Axis Linear Chandelier

• Weights & Dimensions

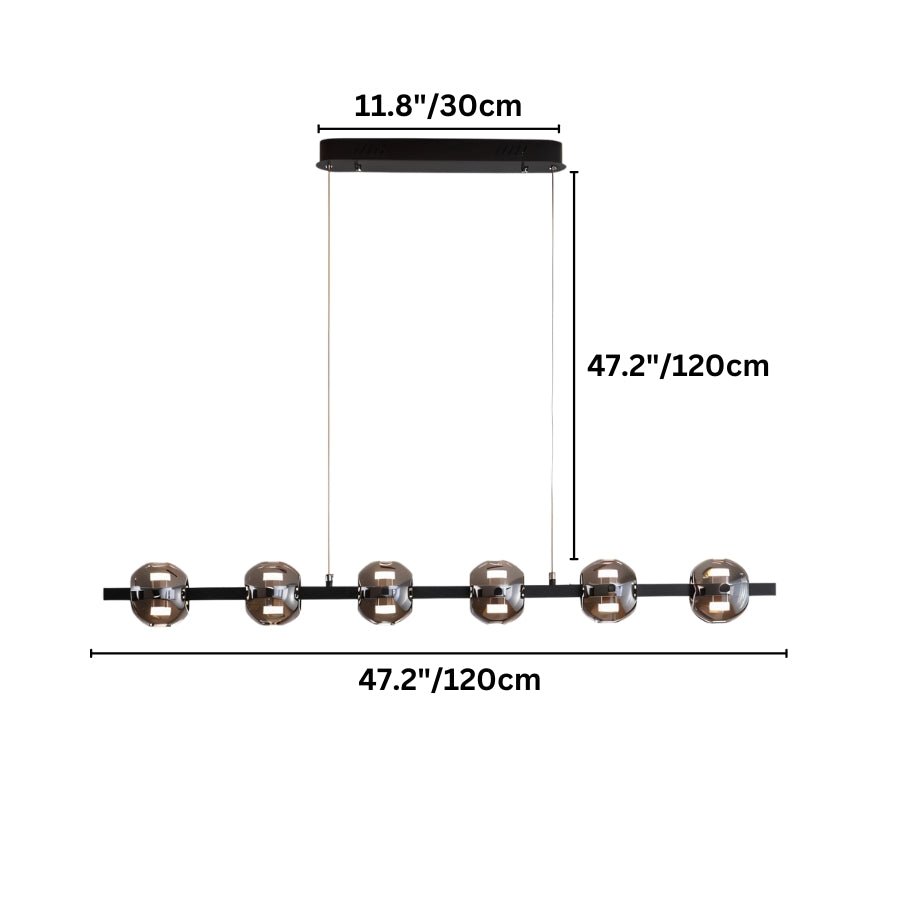

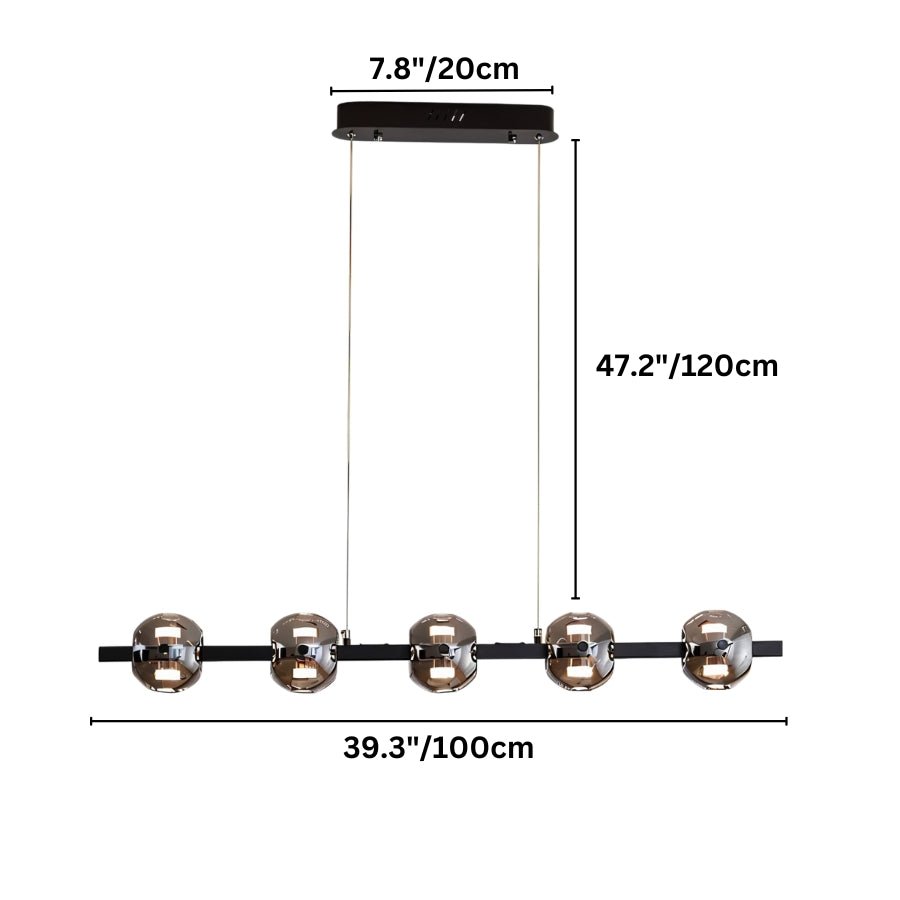

  5 Heads: L47.2" x H47.2", 11lbs (5kg)
  6 Heads: L47.2" x H47.2", 11lbs (5kg)

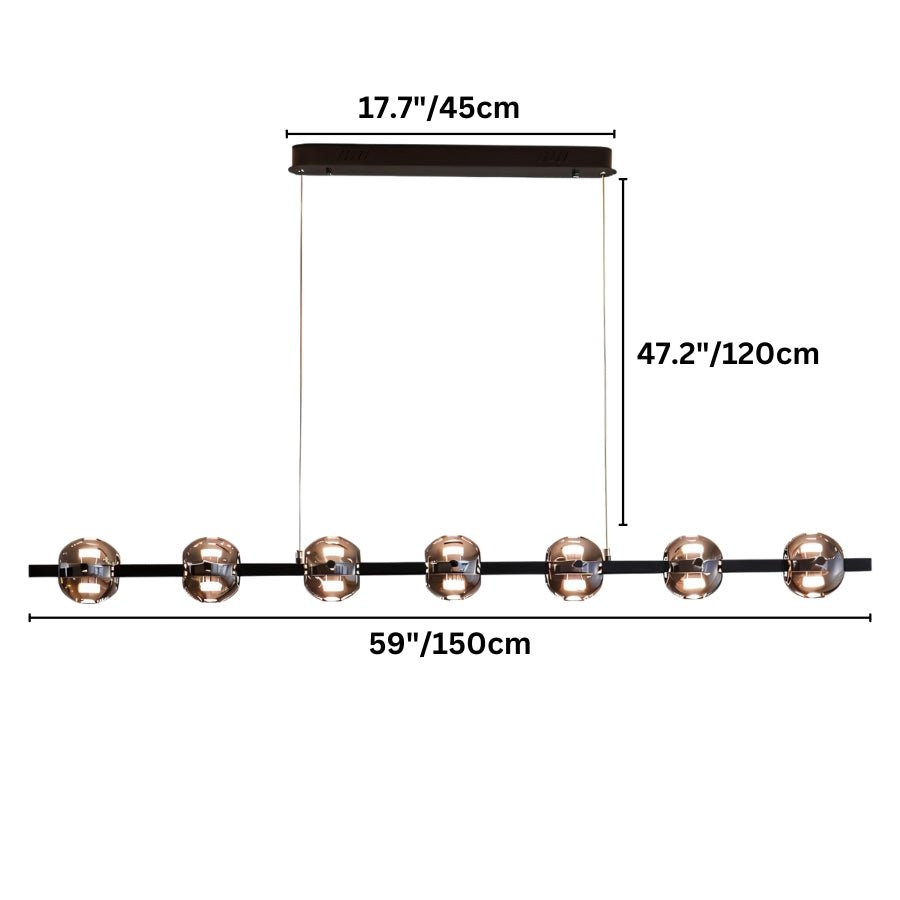

  7 Heads: L59" x H47.2", 11lbs (5kg)
• Wattage (Lumens): 5 Heads: 40W (4400lm), 6 Heads: 48W (5280lm), 7 Heads: 56W (6160lm)
• Material: Iron, Glass
• Finish: Black
• Light Source: Integrated LED
• Dimmable: Yes (Optional)
• Voltage: 90–260VAC
• Installation Type: Hardwired
• Chain/Cord Length: Up to 46.8"
• Adjustable Cord: Yes
• Canopy/Backplate Dimensions: L17.7"
• Sloped Ceiling Compatible?: Upon Request
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, VDE

NOTE
1 in = 2.54 cm; 1 cm = 0.39 in

Details

Mounting Type:
All fixtures are ceiling-mounted and designed for secure installation to a standard ceiling junction box.

Dimming:
Fixtures with standard bulb sockets are dimmable. Integrated LED models are non-dimmable. For dimmer compatibility or custom solutions, please contact us.

Hanging Height:
Standard cord length is 47" (1.2 m). If you require a shorter or longer drop, contact us for custom options.

Ceiling Type:
Compatible with flat ceilings. Most models also support sloped ceilings. Refer to product specifications for confirmation.

Power Source:
Hardwired installation requiring connection to your home’s electrical supply.

Dimensions:
If specific measurements are not listed, please contact us for details.

Tools You May Need

• Screwdriver
• Voltage tester
• Wire stripper
• Wire nuts (included)
• Ladder
• Drill (for new junction boxes or non-standard ceilings)

Installation Steps

Step 1: Turn Off Power
Switch off power at the breaker panel and use a voltage tester to confirm the circuit is off.

Step 2: Mount the Bracket
Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure it is level and firmly fastened.

Step 3: Adjust Hanging Height
Set your desired hanging height by adjusting the cord, chain, or downrod before wiring. Secure the length using the canopy adjustment mechanism.

Step 4: Connect the Wiring

Match the fixture wires to your ceiling wires:

• Black (live) to black
• White (neutral) to white
• Green or bare (ground) to ground wire or ground screw

Secure all connections with wire nuts and carefully tuck wires into the junction box.

Step 5: Attach the Fixture
Align the canopy or decorative plate with the mounting bracket and fasten using the provided screws or caps until flush and secure.

Step 6: Install Light Bulbs
Insert the correct bulb type and wattage as specified. If using dimmable bulbs, confirm compatibility with your wall dimmer.

Step 7: Restore Power and Test
Turn the power back on and test the fixture to ensure proper operation.

Important Tips

• Follow local electrical codes and regulations
• For high ceilings or complex installations, consult a licensed electrician
• Clean with a soft, dry cloth to maintain finish
• Avoid over-tightening decorative components
