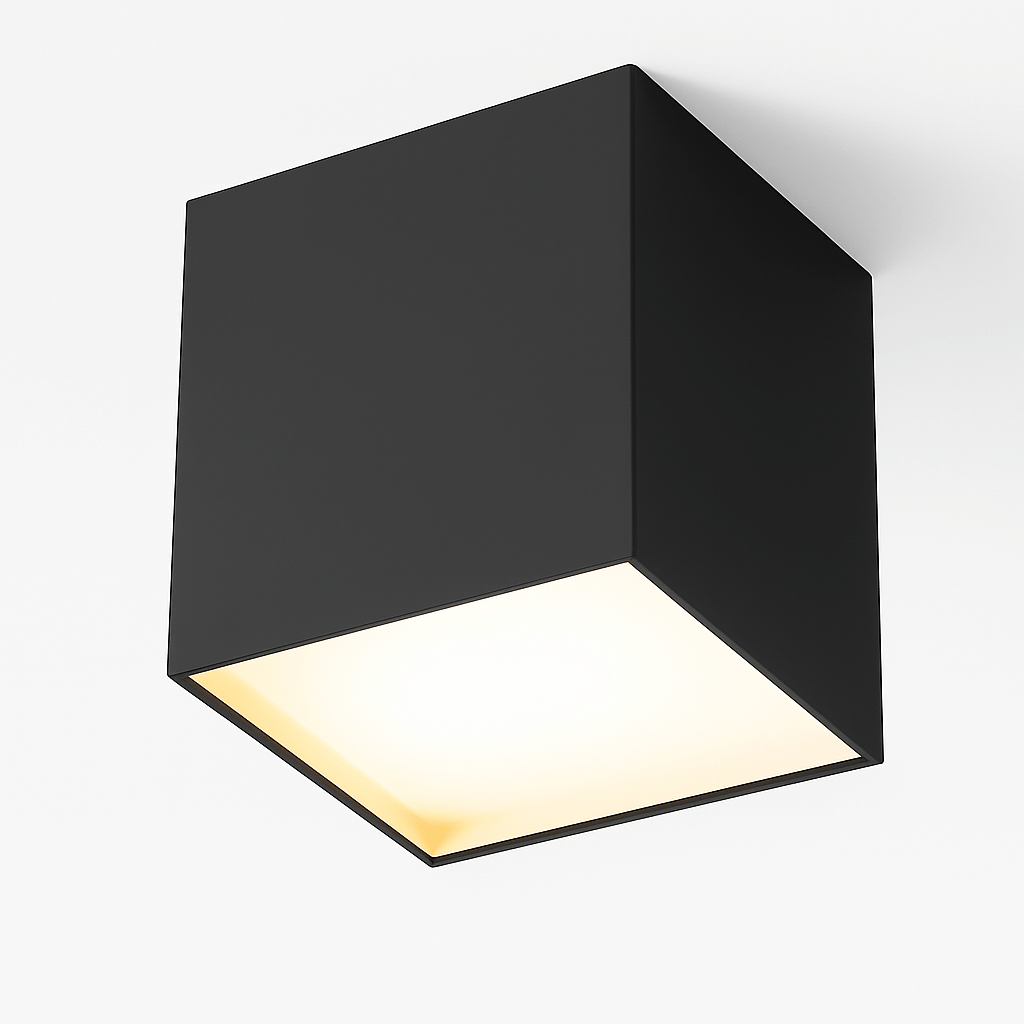

Calrix Downlight
What You’ll Love:
🖤 Sleek Architectural Form: A clean square silhouette in black or white adds a refined, contemporary edge while sitting effortlessly within the ceiling
💡 Exceptional Light Quality: High CRI (Ra90+) delivers true-to-life colour and a soft, balanced glow that enhances the mood of any space
🛡️ Built for Long-Term Performance: Die-cast aluminum construction, moisture resistance, and an extended lifespan ensure dependable illumination for years to come
Description

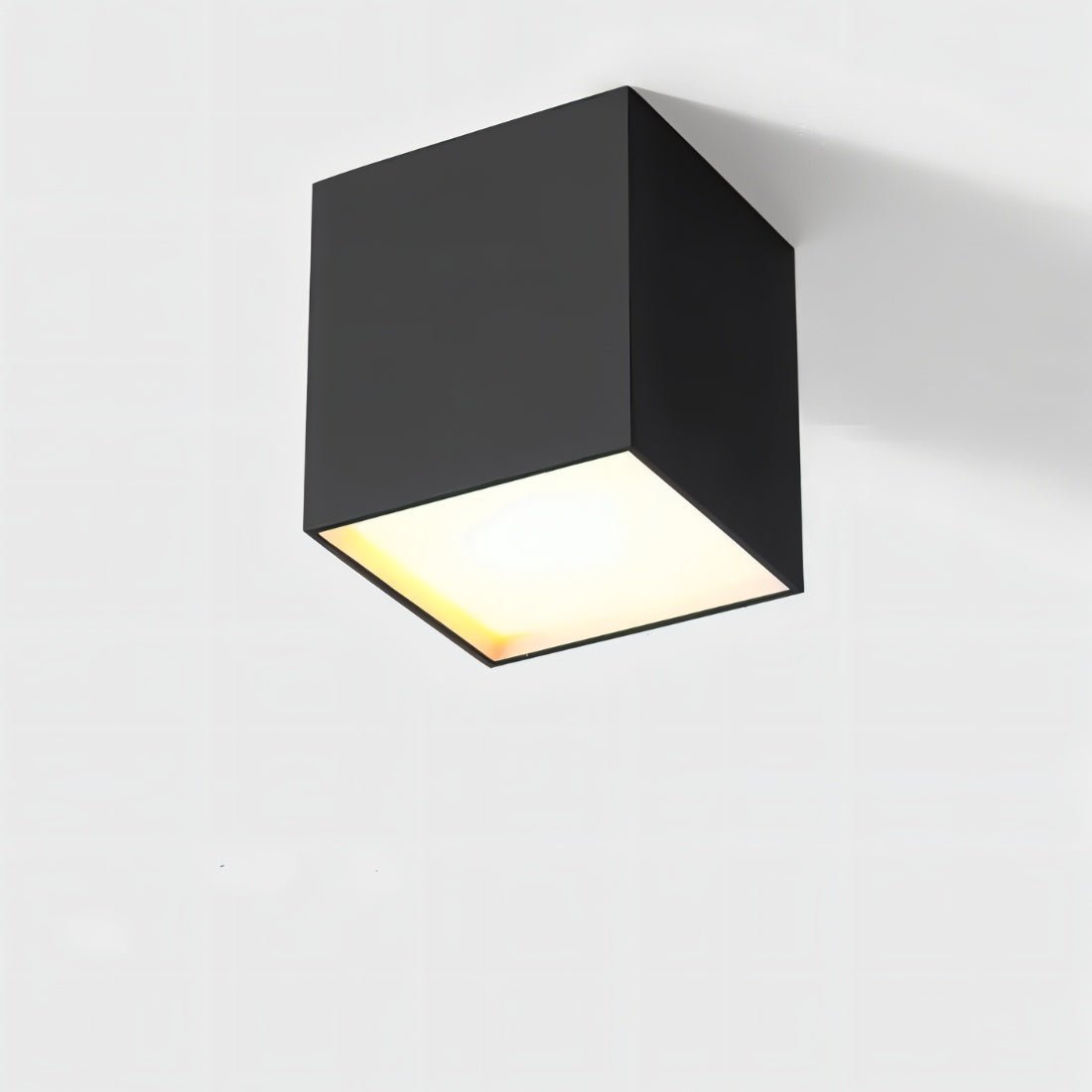

The Calrix Downlight brings refined structure and softness into balance, defined by its sleek square profile and precision die-cast aluminium construction. Designed to sit seamlessly within contemporary ceilings, it delivers a gentle, radiant glow that enhances architectural clarity without overwhelming the space.

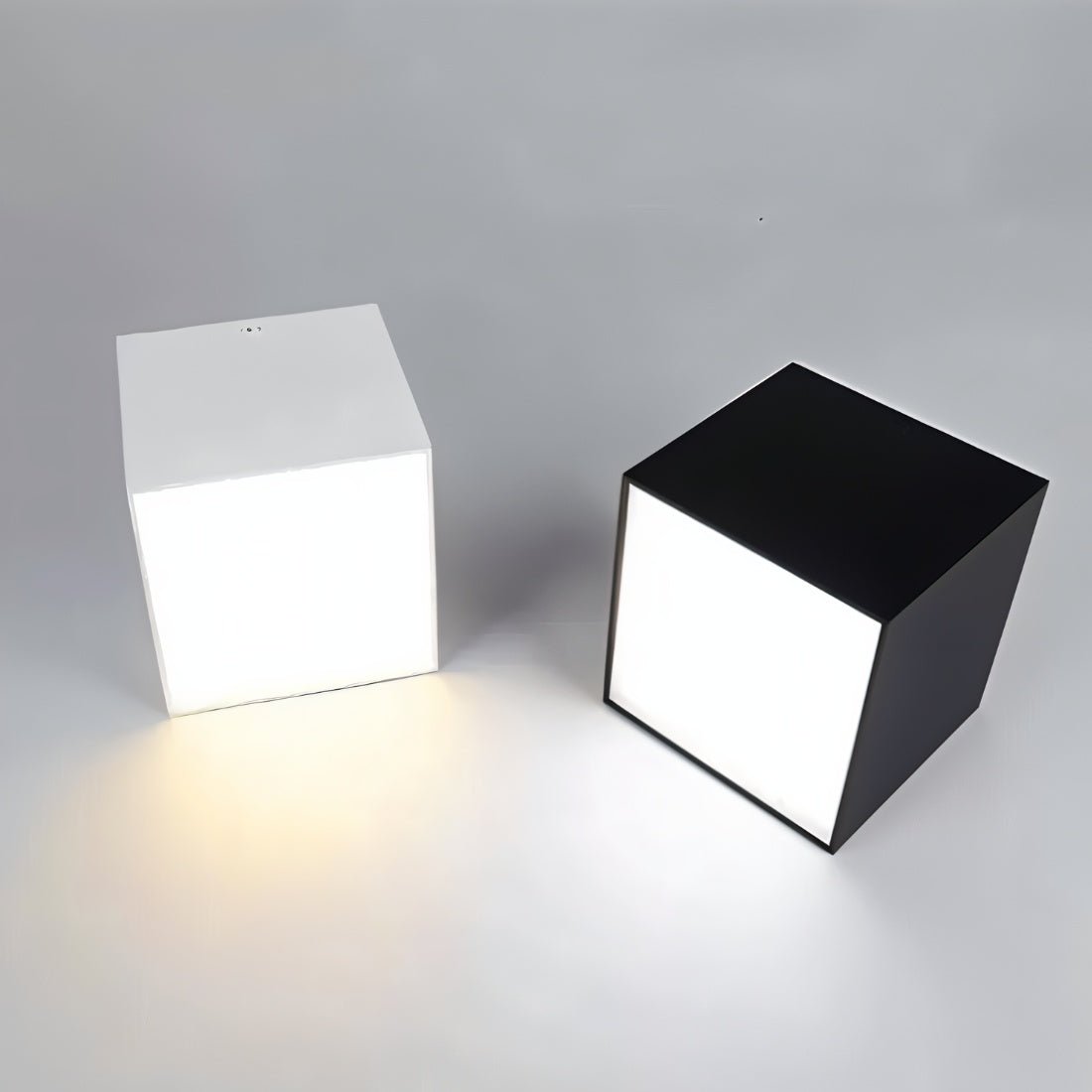

Available in black or white finishes, Calrix integrates effortlessly into modern interiors while offering high colour accuracy (CRI >Ra90) and a focused 90-degree beam angle. With energy-efficient LED performance, IP52 moisture resistance, and a long operational lifespan, it is engineered for enduring elegance across residential and commercial environments.
- Weights & Dimensions
L3.7" x H4.1", 0.6lbs (0.25kg)
L3.7" x H4.1", 0.8lbs (0.35kg)
L4.5" x H4.3", 1.1lbs (0.5kg)
L4.5" x H4.3", 1.3lbs (0.6kg)
L4.5" x H4.3", 1.8lbs (0.8kg)
L4.5" x H4.3", 2lbs (0.9kg) - Wattage (Lumens):
15W (1650lm)
20W (2200lm)
25W (2750lm)
30W (3300lm) - Material: Aluminum
- Finish: Black, White
- Light Source: Integrated LED
- Dimmable: Yes (Optional)
- Voltage: 90-260VAC
- Installation Type: Hardwired
- Sloped Ceiling Compatible?: Yes
- Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
NOTE
1 in = 2.54 cm; 1 cm = 0.39 in
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.
Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.
Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.
Tools You May Need
- Drill
- Keyhole or drywall saw (for recessed or trimless installations)
- Screwdriver
- Voltage tester
- Wire stripper
- Wire nuts (included with most fixtures)
- Screws and wall anchors (for surface-mounted installations)
- Level
- Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.
Step 3: Install Mounting Hardware or Fixture Housing
- Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
- Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
- Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
- Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.
Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:
- Black to black (live)
- White to white (neutral)
- Green or bare wire to ground
- Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.
Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.
Important Tips
- Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
- Always follow local electrical codes and regulations.
- Use only compatible drivers and dimmers specified for the fixture.
- Maintain safe spacing from insulation to prevent overheating.
- Order Handling Time:
1–3 business days
- Transit Time:
14–22 business days after order placement
- Estimated Delivery Time:
15–25 business days
For full details, please refer to our Shipping Policy
We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.
Claims submitted after this period may not be eligible for a refund or replacement.
Choose options
Safe payment on our website
Calrix Downlight
Frequently Asked Questions
It is constructed from high-grade die-cast aluminum.
Switch off the power at the main circuit breaker before installation. Cut the required ceiling opening, connect the driver to the power source, and wire the fixture according to the provided instructions. Professional installation is recommended.
It is rated for over 80,000 hours of operation.
It uses LED technology designed for reduced energy consumption compared to traditional lighting.
Yes. It is rated IP52, providing protection against dust ingress and dripping water when tilted up to 15 degrees.
