In stock | Ready to Ship

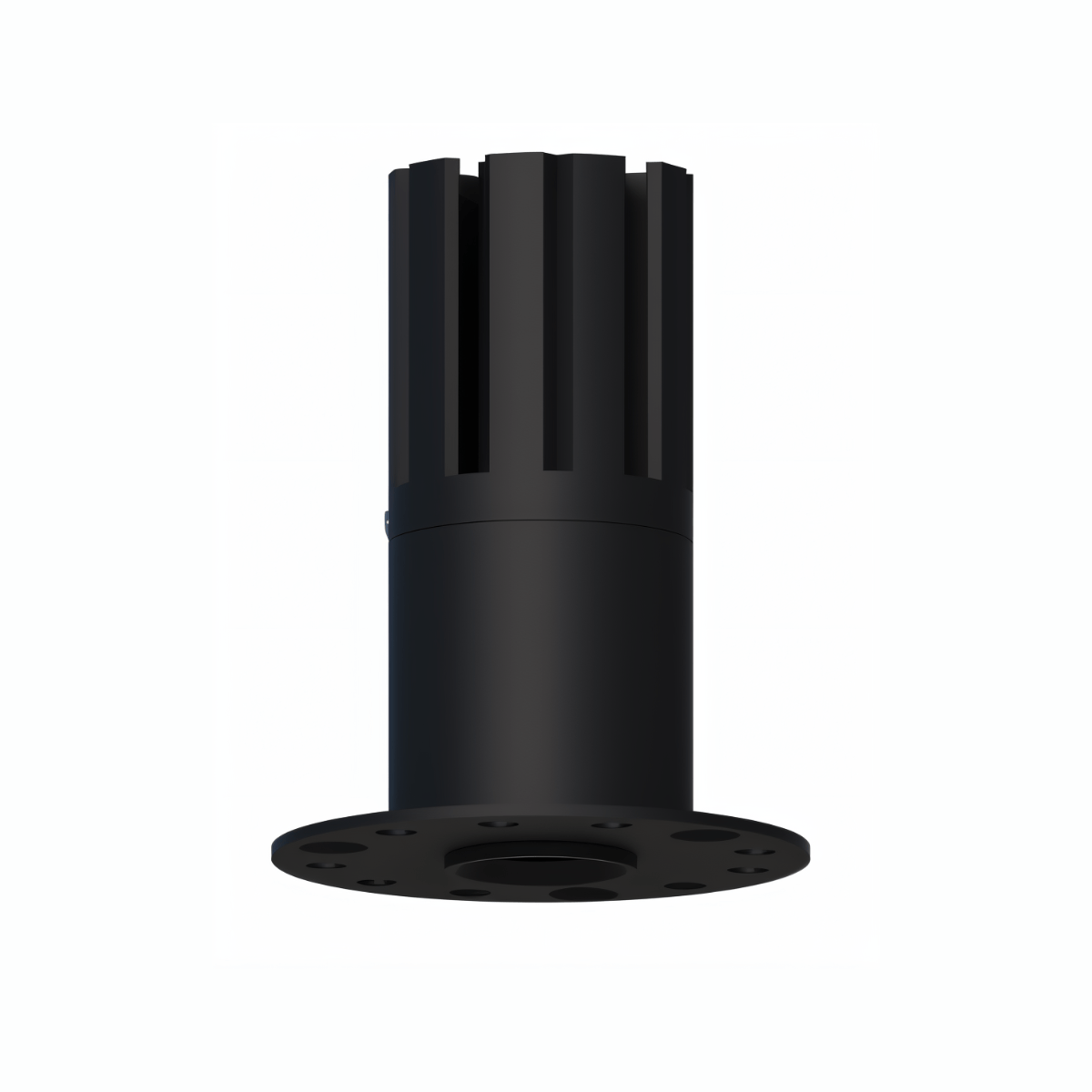

Calvor Trimless Downlight
What You’ll Love:
⭕ Seamless Trimless Design: Integrates directly into the ceiling for a clean, uninterrupted architectural finish. A refined solution for minimalist interiors
💡 Precision Beam Options: Choose between 22° for focused highlights or 36° for softer ambient coverage. Designed to balance task lighting with atmosphere
🛡️ Engineered Aluminium Performance: Solid build with advanced heat dissipation ensures glare-free illumination and long-term reliability
Description
The Calvor Trimless Downlight redefines ceiling minimalism through a seamless, architectural integration. Crafted from solid aluminium, it installs flush within plastered surfaces to create a refined, continuous ceiling line without visible trim.
Designed with a deep-set reflector, Calvor delivers focused, glare-controlled illumination that enhances both spatial clarity and visual comfort. Available in 22° and 36° beam angles, it balances precise task lighting with ambient warmth, while the precision-engineered heat sink ensures reliable long-term performance in dry indoor environments.
- Weights & Dimensions
D2.1" x H3.3" | Cutout: D1.4", 0.2lbs (0.09kg)
D2.8" x H3.5" | Cutout: D1.7", 0.3lbs (0.14kg)
D3.3" x H3.8" | Cutout: D2.1", 0.4lbs (0.18kg)
D4.1" x H4.2" | Cutout: D2.9", 0.9lbs (0.41kg) - Wattage (Lumens): 5W (550lm), 7W (770lm), 9W (990lm), 12W (1320lm)
- Material: Aluminum Body, Plastic Lens Diffuser
- Finish: Black
- Light Source: Bridgelux COB
- Dimmable: Yes (Optional)
- Voltage: AC120-277V
- Power Factor: >0.9
- CRI: >90Ra
- IP Rating: IP20
- Beam Angle: 22° / 36°
- Lifespan: 50,000Hrs
- Warranty: 3 Years
- Installation Type: Hardwired
- Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
NOTE
1 in = 2.54 cm; 1 cm = 0.39 in
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.
Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.
Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.
Tools You May Need
- Drill
- Keyhole or drywall saw (for recessed or trimless installations)
- Screwdriver
- Voltage tester
- Wire stripper
- Wire nuts (included with most fixtures)
- Screws and wall anchors (for surface-mounted installations)
- Level
- Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.
Step 3: Install Mounting Hardware or Fixture Housing
- Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
- Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
- Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
- Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.
Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:
- Black to black (live)
- White to white (neutral)
- Green or bare wire to ground
- Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.
Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.
Important Tips
- Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
- Always follow local electrical codes and regulations.
- Use only compatible drivers and dimmers specified for the fixture.
- Maintain safe spacing from insulation to prevent overheating.
- Order Handling Time:
1–3 business days
- Transit Time:
14–22 business days after order placement
- Estimated Delivery Time:
15–25 business days
For full details, please refer to our Shipping Policy
We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.
Claims submitted after this period may not be eligible for a refund or replacement.
Choose options
Safe payment on our website
Calvor Trimless Downlight
Frequently Asked Questions
It is constructed from aluminium and plastic to provide durability and effective heat dissipation.
It is available in 5W, 7W, 9W, 12W, and 15W configurations.
Yes. It features an integrated LED module that is built in and included.
It supports an input range of 120–277 VAC, suitable for residential and commercial installations.
It is rated IP20, indicating protection against solid objects larger than 12 mm and suitability for dry indoor environments.
