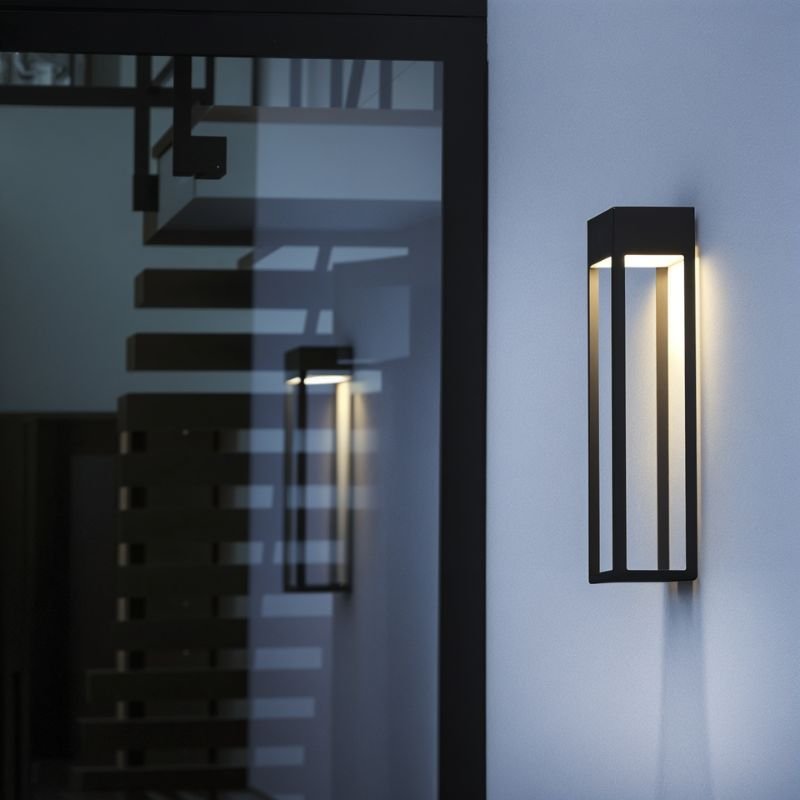

Delra Outdoor Wall Lamp

• Weights & Dimensions:
  A: L4.3" x W3.1" x H7.8", 1.7lbs
  B: L5.9" x W3.9" x H13.7", 1.7lbs
• Wattage (Lumens): 5W (550lm)
• Material: Stainless Steel
• Finish: Grey
• Light Source: Integrated LED
• Dimmable: Upon Request
• Voltage: 90–260VAC
• Installation Type: Wall Mount
• Canopy/Backplate Dimensions: A: L4.3" x H7.8", B: L5.9" x H13.7"
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, VDE

NOTE
1 in = 2.54 cm; 1 cm = 0.39 in

Details

Dimming: Most wall lamps with standard bulb sockets are dimmable. Integrated LED models are not dimmable. For dimmer compatibility or custom solutions, please contact us.
Power Options: Depending on the model, your wall lamp may be hardwired, plug-in, or rechargeable. Always check the product details before installation.
Mounting Type: All wall lamps are designed for wall-mount installation. Required mounting hardware is included.
Indoor/Outdoor Use: Some models are suitable for outdoor use. Please verify the product rating before installing outdoors.
Dimensions: If you need detailed measurements, please contact us for assistance.

Tools You May Need

• Screwdriver
• Wire nuts (included for hardwired models)
• Voltage tester
• Power drill (for new mounting locations)

Installation Steps

Step 1: Identify Your Power Type
Confirm whether your wall lamp is hardwired, plug-in, or rechargeable.

• Hardwired models require connection to your home’s electrical wiring
• Plug-in models connect directly to a wall outlet
• Rechargeable models mount to the wall and charge via the included cable


Step 2: Turn Off Power (Hardwired Models Only)
Switch off power at your home’s main electrical panel and use a voltage tester to confirm the circuit is not live.

Step 3: Remove Existing Fixture (If Applicable)
Unscrew and remove the existing wall lamp. Carefully disconnect the wires by removing the wire nuts.

Step 4: Attach the Mounting Bracket
Align the mounting bracket with the junction box or marked wall location and secure it firmly using the provided screws.

Step 5: Connect the Wiring (Hardwired Models Only)
Match the wires correctly: black to black (live), white to white (neutral), and green or bare wire to ground. Secure connections with wire nuts and neatly tuck the wires into the junction box.

Step 6: Mount the Lamp Fixture
Align the fixture with the mounting bracket and secure it using the supplied screws.

Step 7: Install Bulb (If Applicable)
Insert the recommended bulb type and wattage. Integrated LED models do not require bulb installation.

Step 8: Restore Power and Test
Turn the power back on at the breaker panel and test the lamp to ensure proper operation.

For Plug-In Models:
Mount the bracket to the wall using anchors and screws, attach the fixture, then plug it into a nearby wall outlet. Route the cord neatly and secure it if necessary.

For Rechargeable Models:
Mount the bracket using screws and anchors, fully charge the lamp using the included cable, then attach the lamp to the bracket and power it on.

Important Tips

• Always follow local electrical codes and regulations
• Consult a licensed electrician if you are unsure about installation
• Regularly dust and clean the fixture to maintain appearance and performance
