Helcor Adjustable Downlight
What You’ll Love:
⭕ Precision Adjustable Tilt: Direct light exactly where it’s needed, even on sloped ceilings. Designed for focused, intentional illumination
💧 IP65 Protected Build: Sealed against dust and water, making it suitable for bathrooms, kitchens, and sheltered outdoor areas
🛡️ Glare-Controlled Durability: Deep-set reflector softens brightness while the finned housing ensures efficient heat dissipation and long-term performance
Description

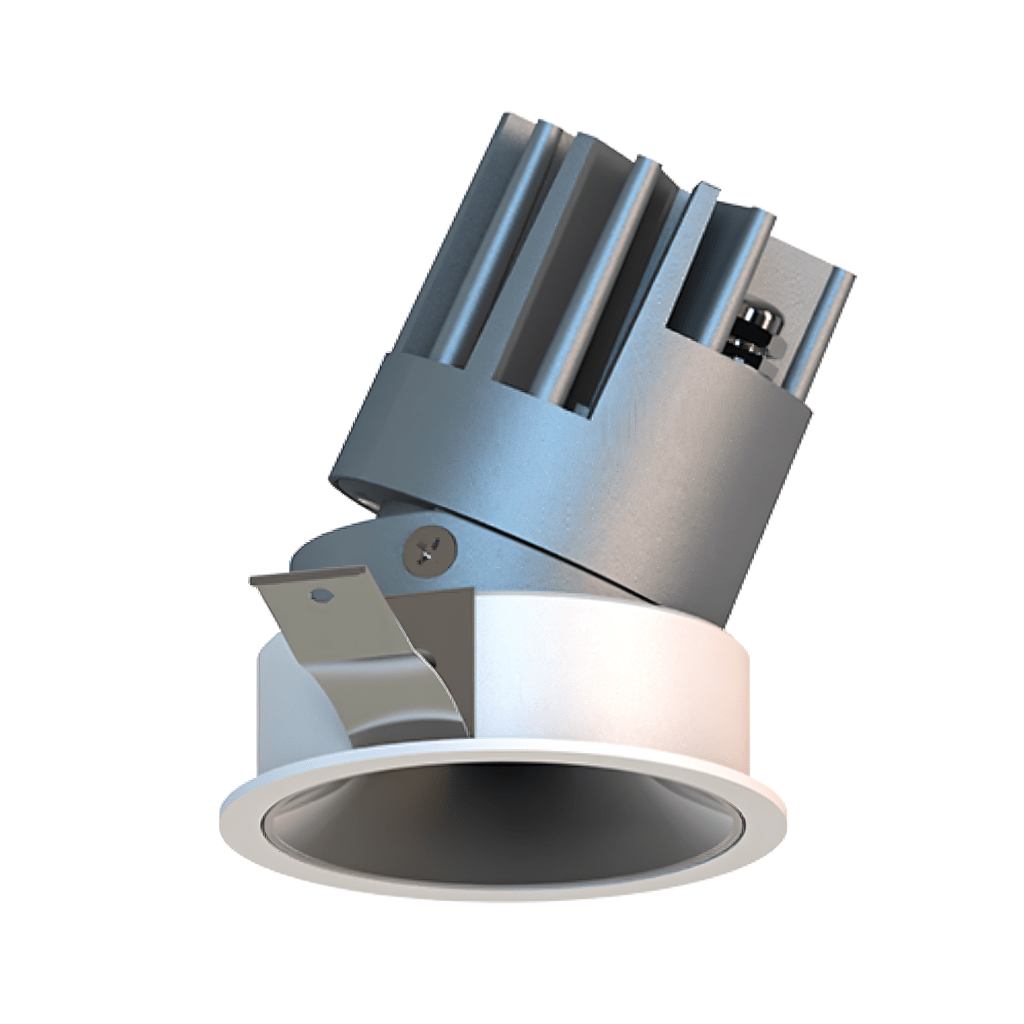

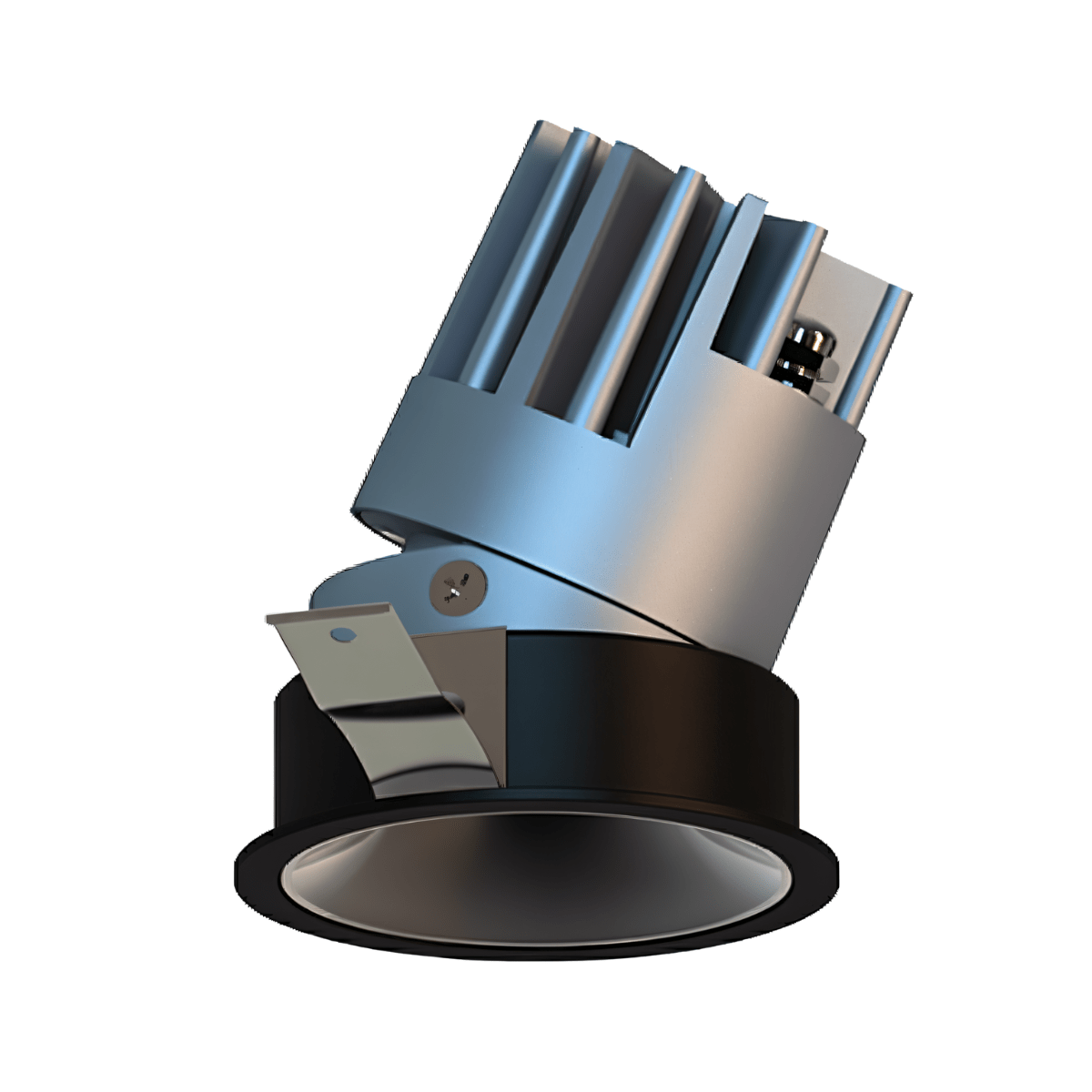

The Helcor Adjustable Downlight is a high-performance recessed fixture crafted from durable aluminium and plastic, engineered with a finned housing for efficient heat dissipation. Its deep-set reflector ensures glare-controlled illumination while maintaining a clean architectural ceiling profile.
Designed with an adjustable tilt mechanism, Helcor allows precise light direction, including installation on sloped ceilings. Rated IP65 for protection against dust and water exposure, it offers multiple beam angle options for flexible, comfortable lighting across residential and commercial environments.
- Weights & Dimensions

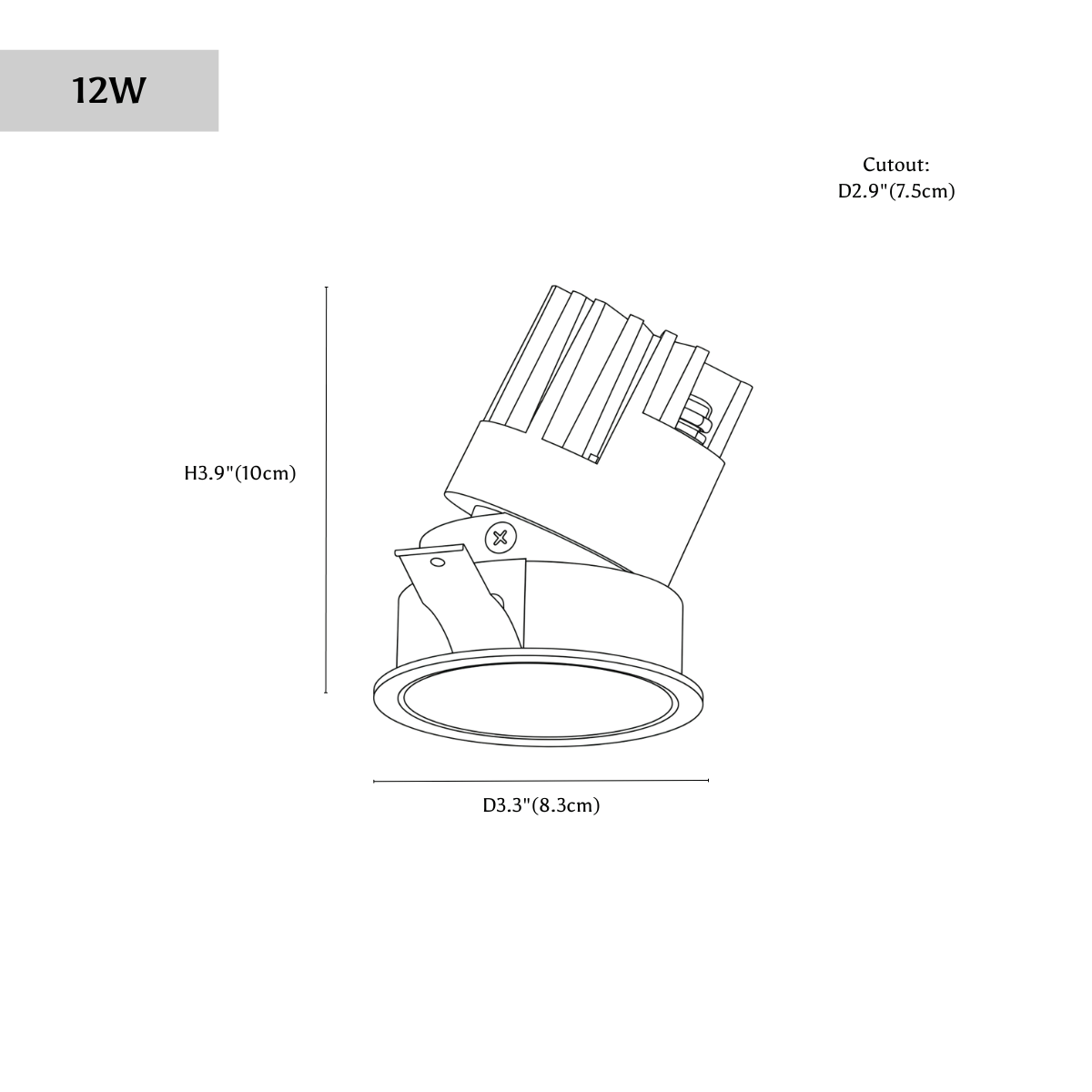

D3.3" x H3.9" | Cutout: D2.9", 0.7lbs (0.32kg) - Wattage (Lumens): 12W (1320lm)
- Material: Aluminum Trim, Plastic Reflector
- Finish: Black, White, Grey
- Light Source: Bridgelux COB
- Dimmable: Yes (Optional)
- Voltage: AC120-277V
- Power Factor: >0.9
- CRI: >90Ra
- IP Rating: IP65
- Beam Angle: 15°/ 24°/ 36°/ 50°
- Lifespan: 50,000Hrs
- Warranty: 3 Years
- Installation Type: Hardwired
- Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
NOTE
1 in = 2.54 cm; 1 cm = 0.39 in
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.
Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.
Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.
Tools You May Need
- Drill
- Keyhole or drywall saw (for recessed or trimless installations)
- Screwdriver
- Voltage tester
- Wire stripper
- Wire nuts (included with most fixtures)
- Screws and wall anchors (for surface-mounted installations)
- Level
- Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.
Step 3: Install Mounting Hardware or Fixture Housing
- Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
- Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
- Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
- Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.
Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:
- Black to black (live)
- White to white (neutral)
- Green or bare wire to ground
- Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.
Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.
Important Tips
- Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
- Always follow local electrical codes and regulations.
- Use only compatible drivers and dimmers specified for the fixture.
- Maintain safe spacing from insulation to prevent overheating.
- Order Handling Time:
1–3 business days
- Transit Time:
14–22 business days after order placement
- Estimated Delivery Time:
15–25 business days
For full details, please refer to our Shipping Policy
We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.
Claims submitted after this period may not be eligible for a refund or replacement.
Choose options
Safe payment on our website
Helcor Adjustable Downlight
Frequently Asked Questions
It is constructed from aluminium and plastic to provide durability and effective heat management.
It operates at 12W, delivering efficient and consistent illumination.
Yes. It features an integrated LED module that is pre-installed.
It operates within a 120–277 VAC range, suitable for residential and commercial applications.
It is rated IP65, indicating protection against dust and water jets.
