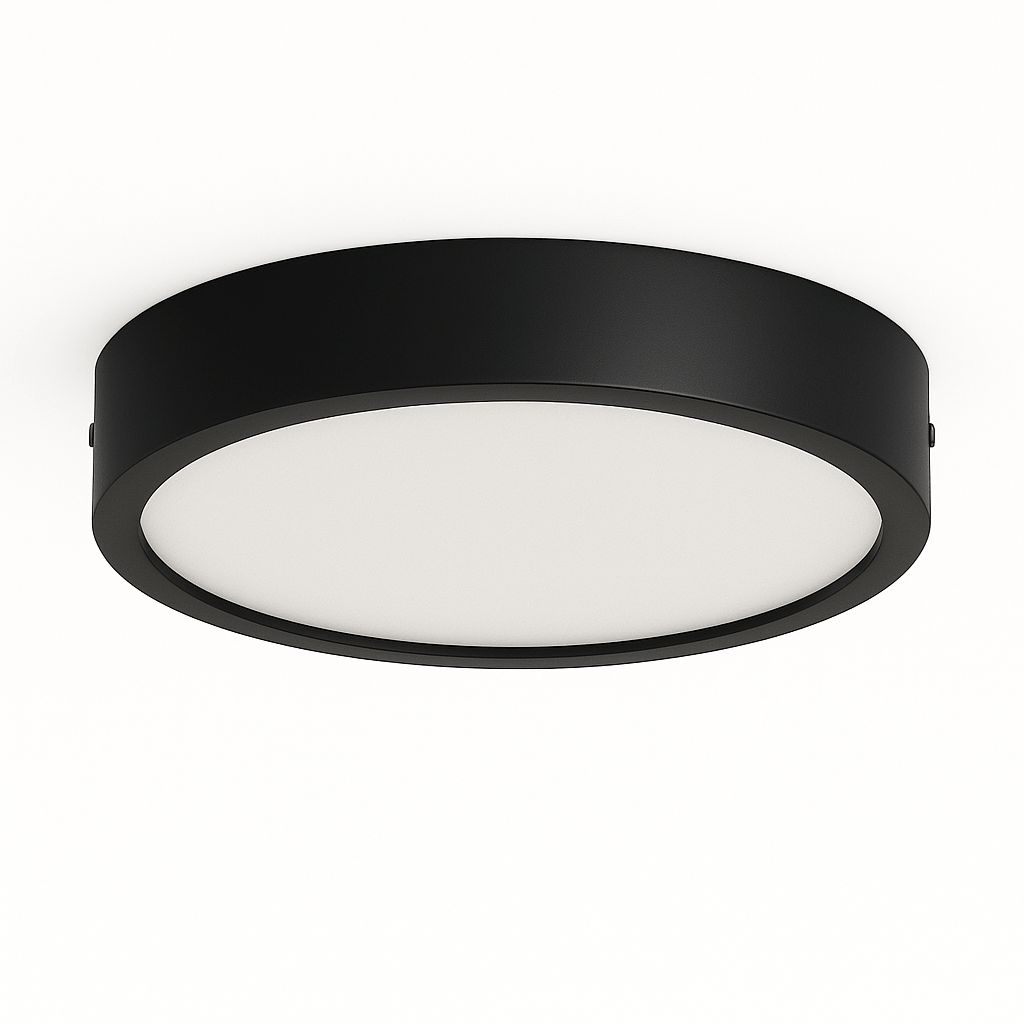

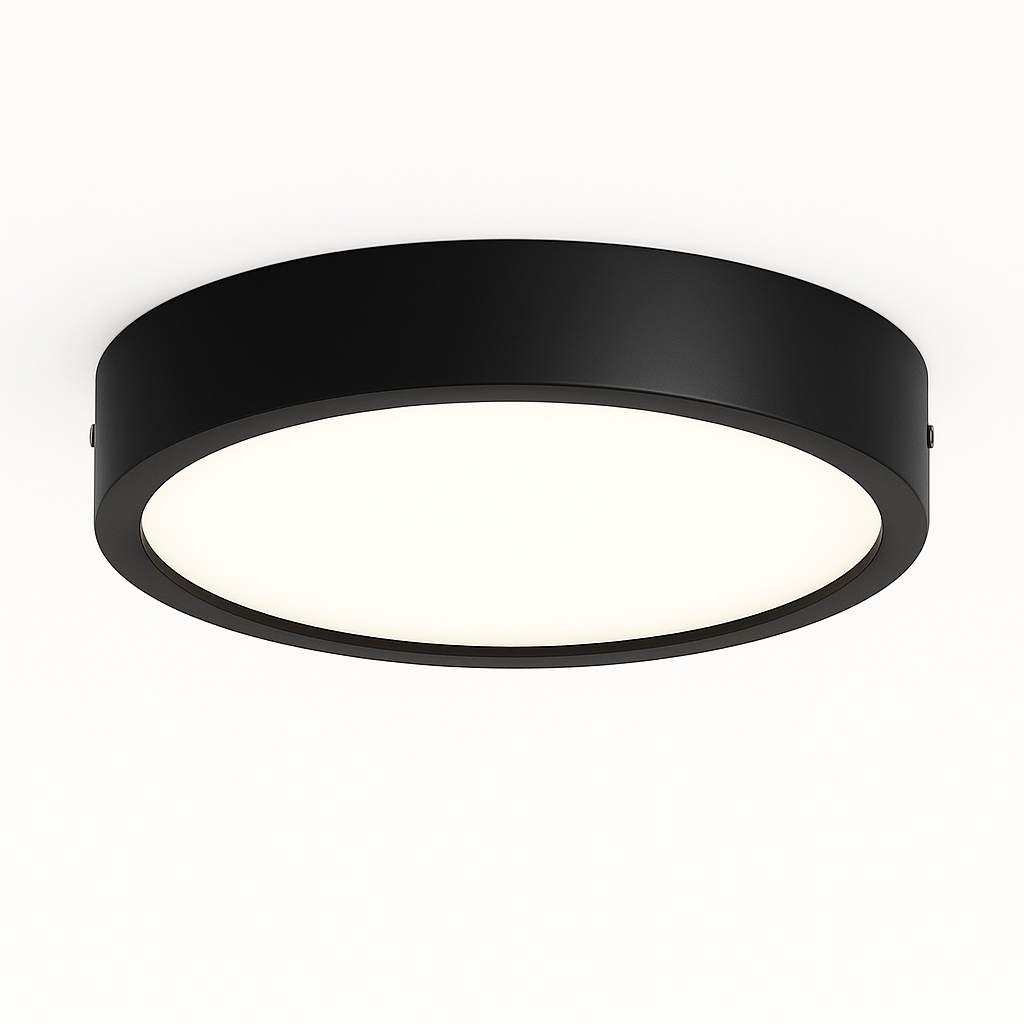

Orvane Downlight

• Weights & Dimensions

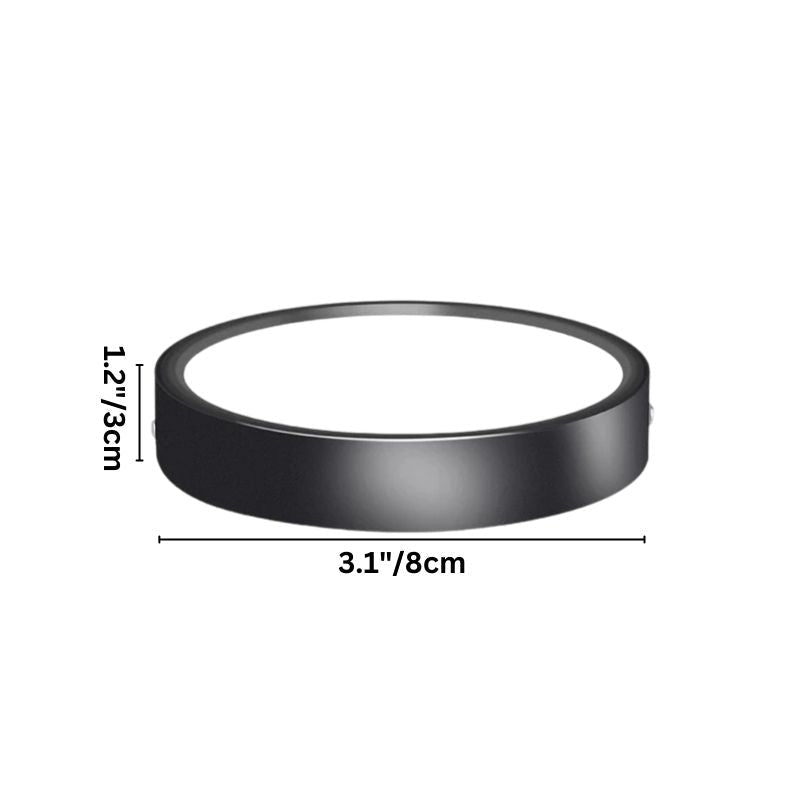

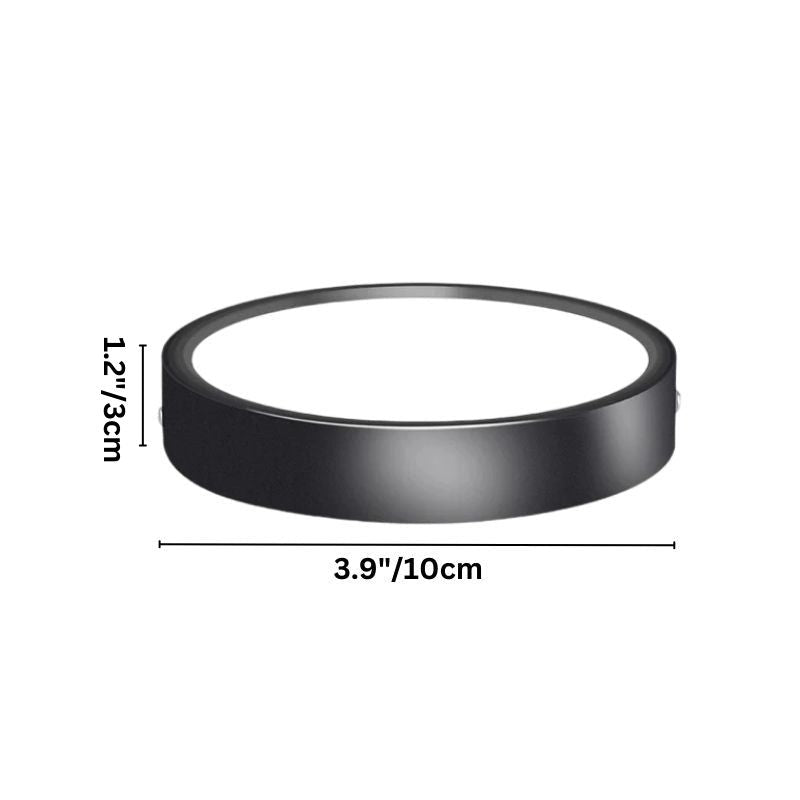

  D3.9" x H1.2", 0.1lbs (0.08kg)

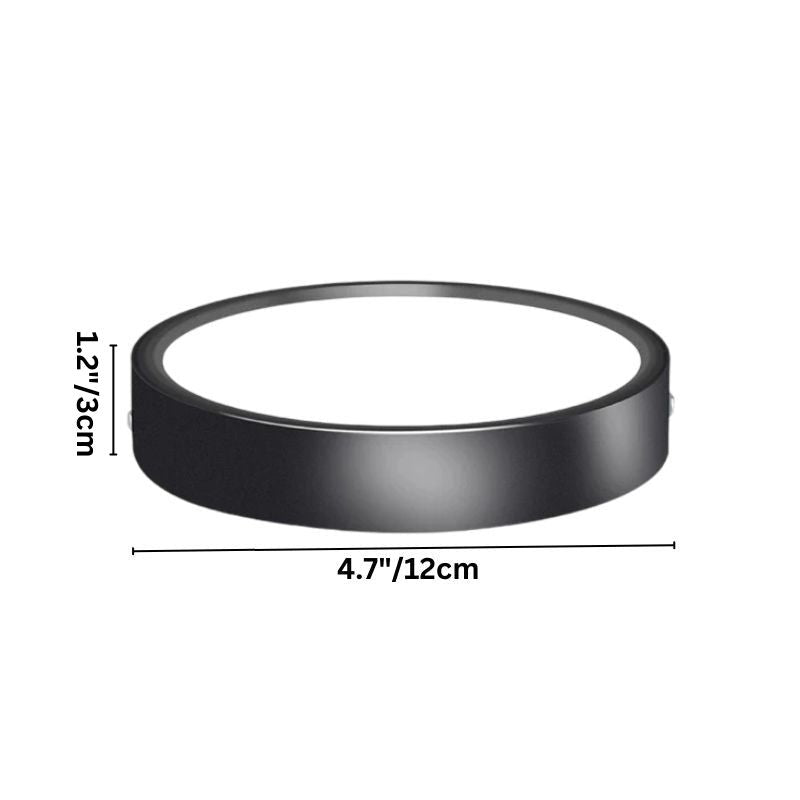

  D4.7" x H1.2", 0.2lbs (0.1kg)

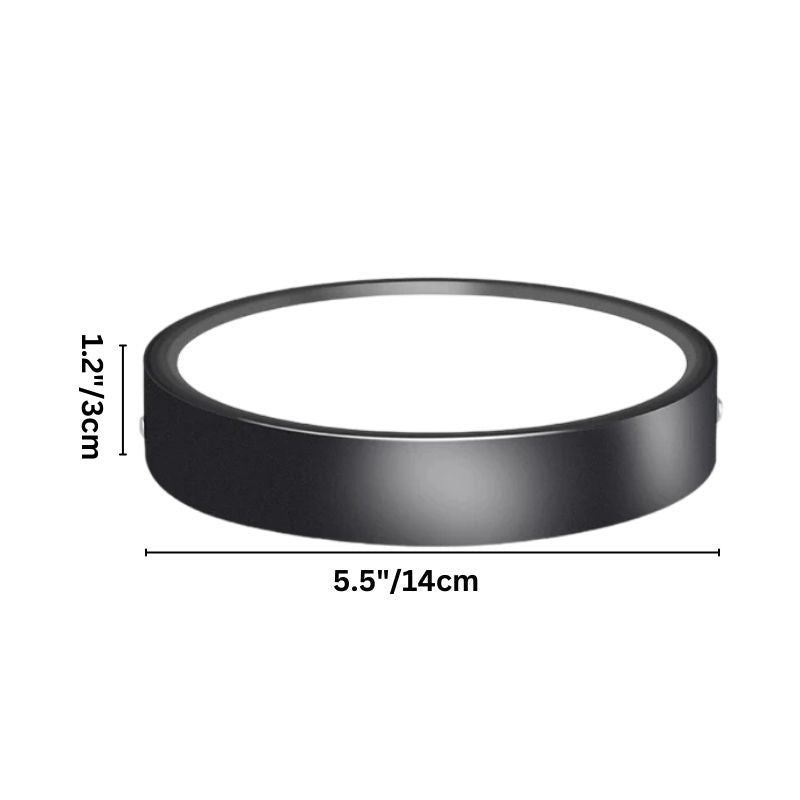

  D5.5" x 1.2", 0.3lbs (0.14kg)
  D5.5" x 1.2", 0.4lbs (0.19kg)
• Wattage (Lumens): 10W (1100lm), 15W (1650lm), 25W (2750lm)
• Material: Aluminum, Acrylic

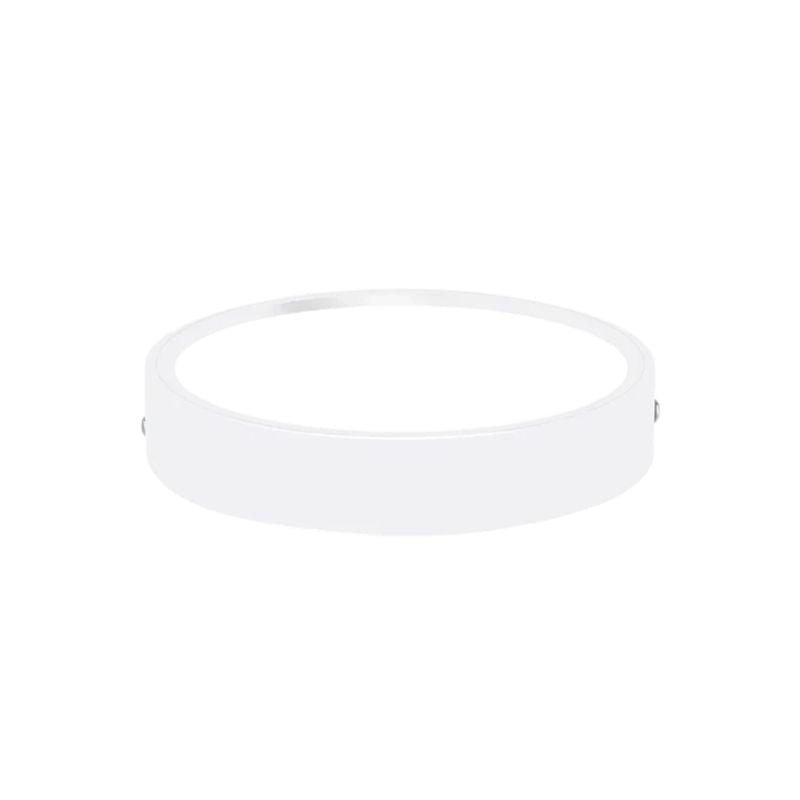

• Finish: Black, White
• Light Source: Integrated LED
• Bulb Included: Yes
• Dimmable: Upon Request
• Voltage: 90-260VAC
• Installation Type: Hardwired
• Canopy/Backplate Dimensions: D3.1"
• Sloped Ceiling Compatible?: Yes
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

  NOTE
  1 in = 2.54 cm; 1 cm = 0.39 in

Details

Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.

Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.

Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.

Power Source: All models are hardwired and connect directly to a ceiling electrical junction.

Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.

Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.

Tools You May Need

• Drill
• Keyhole or drywall saw (for recessed or trimless installations)
• Screwdriver
• Voltage tester
• Wire stripper
• Wire nuts (included with most fixtures)
• Screws and wall anchors (for surface-mounted installations)
• Level
• Measuring tape or pencil

Installation Steps

Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.

Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.

Step 3: Install Mounting Hardware or Fixture Housing

• Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
• Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
• Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
• Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.


Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:

• Black to black (live)
• White to white (neutral)
• Green or bare wire to ground
• Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.


Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.

Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.

Important Tips

• Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
• Always follow local electrical codes and regulations.
• Use only compatible drivers and dimmers specified for the fixture.
• Maintain safe spacing from insulation to prevent overheating.
