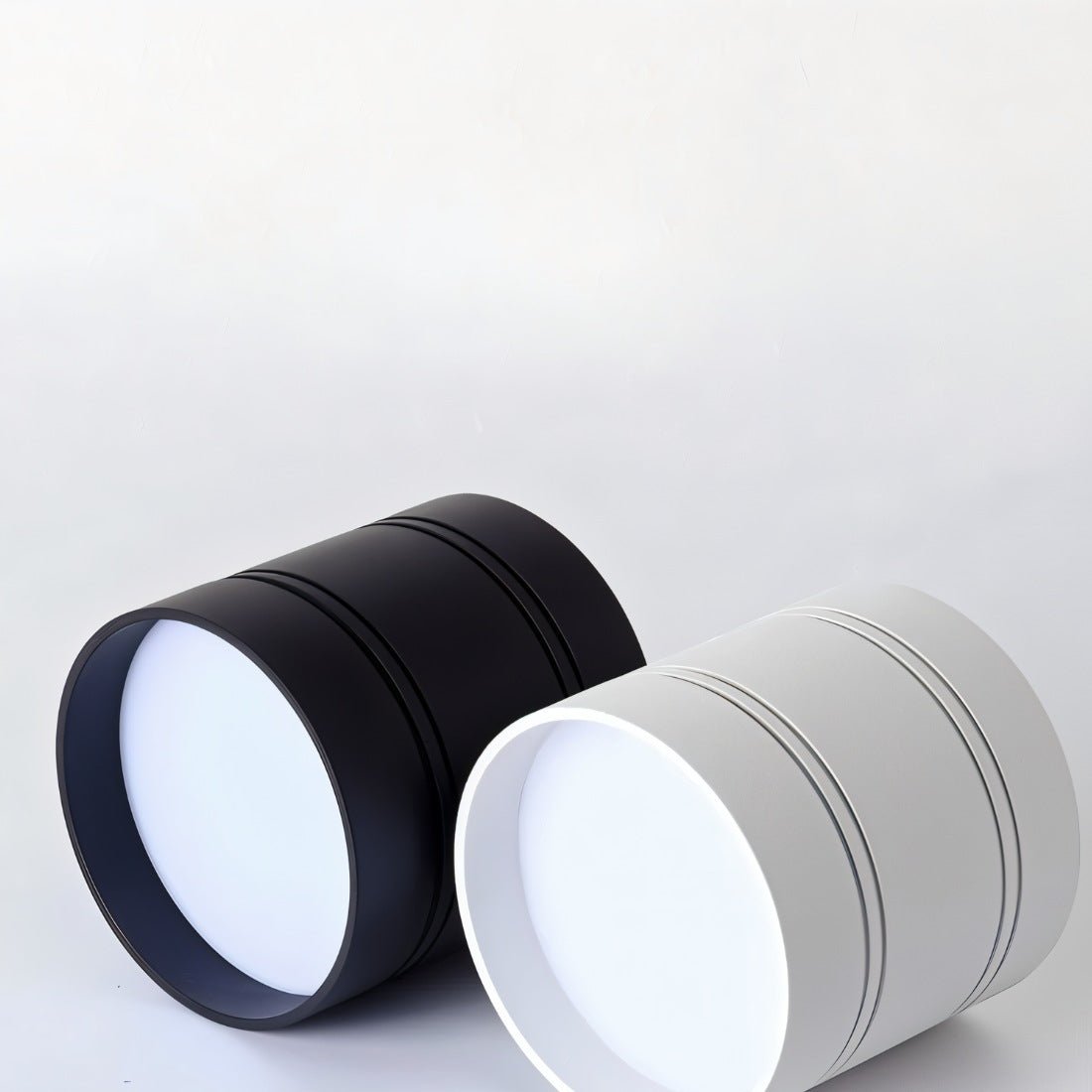

Orvex Downlight – Open Box
What You’ll Love:
🖤 Sleek, Architectural Simplicity: A refined aluminum form in timeless black or white that integrates effortlessly into modern living spaces, offices, and retail settings
💡 Beautifully Accurate Light: High CRI (Ra90+) and a focused 30° beam deliver crisp, true-to-life illumination that enhances colour, texture, and detail

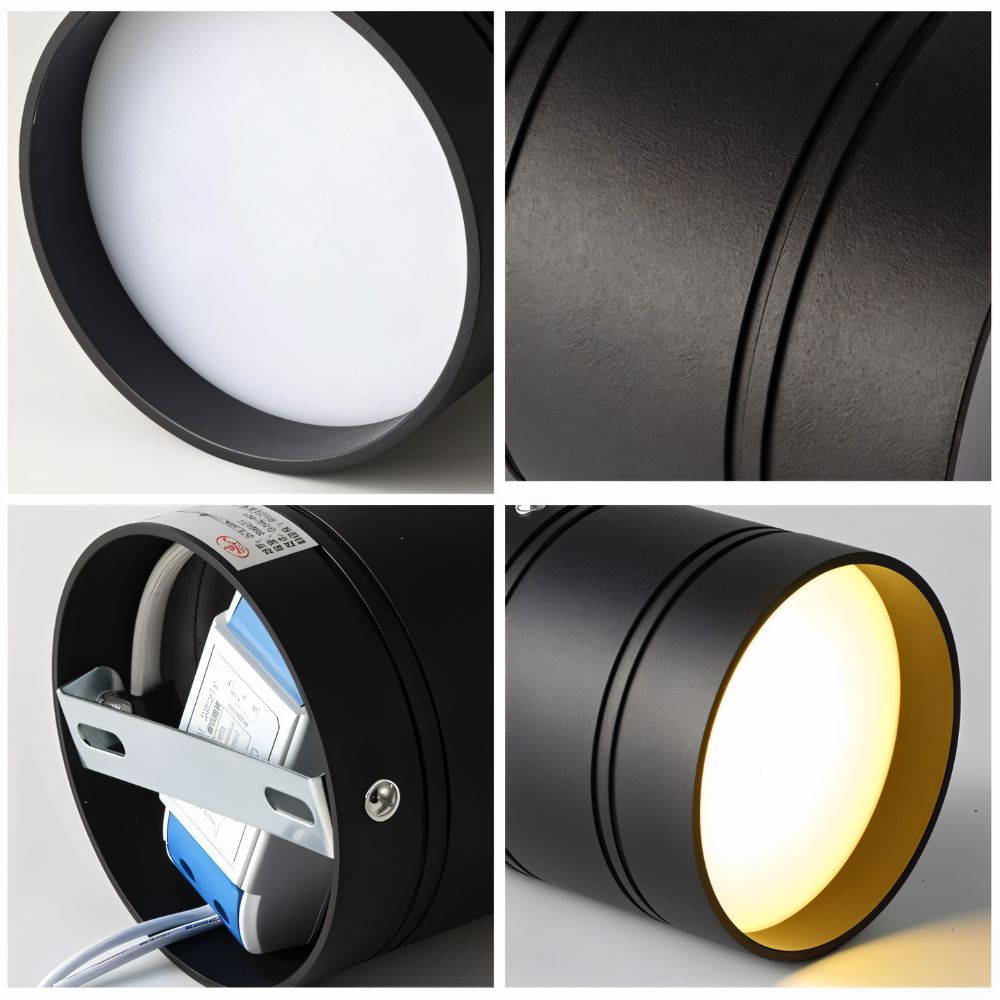

🛡️ Engineered for Longevity: Die-cast aluminum construction, moisture resistance, and an extended lifespan ensure dependable, low-maintenance performance
Description
The Orvex Downlight – Open Box reflects a clean architectural aesthetic, defined by its refined silhouette and solid die-cast aluminium construction. Available in black or white finishes, it introduces a subtle yet confident presence that complements contemporary interiors with ease.
Engineered for both visual clarity and durability, Orvex features a high colour rendering index (CRI >90), a focused 30-degree beam angle, and IP52-rated moisture resistance. Designed for long-term LED performance across residential and commercial settings, it offers reliable illumination with minimal maintenance. Please note: Open Box items are non-refundable.
- Weights & Dimensions
Small: D3.5" x H3.5", 0.3lbs (0.14kg)
Large: D4.5" x H4.3", 0.6lbs (0.27kg)
Large: D4.5" x H4.3", 0.9lbs (0.43kg) - Wattage (Lumens):
Small: 9W (990lm)
Small: 12W (1320lm)
Large: 15W (1650lm)
Large: 20W (2200lm) - Material: Aluminum, Acrylic
- Finish: Black, White
- Light Source: Integrated LED
- Bulb Included: Yes
- Dimmable: Yes (Optional)
- Voltage: 90-260VAC
- Installation Type: Hardwired
- Canopy/Backplate Dimensions: D3.5", D4.5"
- Sloped Ceiling Compatible?: Yes
- Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
NOTE
1 in = 2.54 cm; 1 cm = 0.39 in
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.
Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.
Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.
Tools You May Need
- Drill
- Keyhole or drywall saw (for recessed or trimless installations)
- Screwdriver
- Voltage tester
- Wire stripper
- Wire nuts (included with most fixtures)
- Screws and wall anchors (for surface-mounted installations)
- Level
- Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.
Step 3: Install Mounting Hardware or Fixture Housing
- Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
- Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
- Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
- Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.
Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:
- Black to black (live)
- White to white (neutral)
- Green or bare wire to ground
- Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.
Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.
Important Tips
- Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
- Always follow local electrical codes and regulations.
- Use only compatible drivers and dimmers specified for the fixture.
- Maintain safe spacing from insulation to prevent overheating.
- Order Handling Time:
1–3 business days
- Transit Time:
14–22 business days after order placement
- Estimated Delivery Time:
15–25 business days
For full details, please refer to our Shipping Policy
We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.
Claims submitted after this period may not be eligible for a refund or replacement.
Choose options
Safe payment on our website
Orvex Downlight – Open Box
Frequently Asked Questions
It is constructed from high-quality aluminum.
Yes. It is available in black and white finishes.
It features a 30-degree beam angle for focused illumination and a CRI greater than 90 for accurate color representation. The fixture is rated for over 80,000 hours of operation.
CRI measures a light source’s ability to reproduce colors accurately compared to natural light. A CRI above 90 indicates a high level of color accuracy.
The beam angle is 30 degrees, providing controlled and directional light distribution.
