Sorev Knob & Pull Bar

• Weights & Dimensions

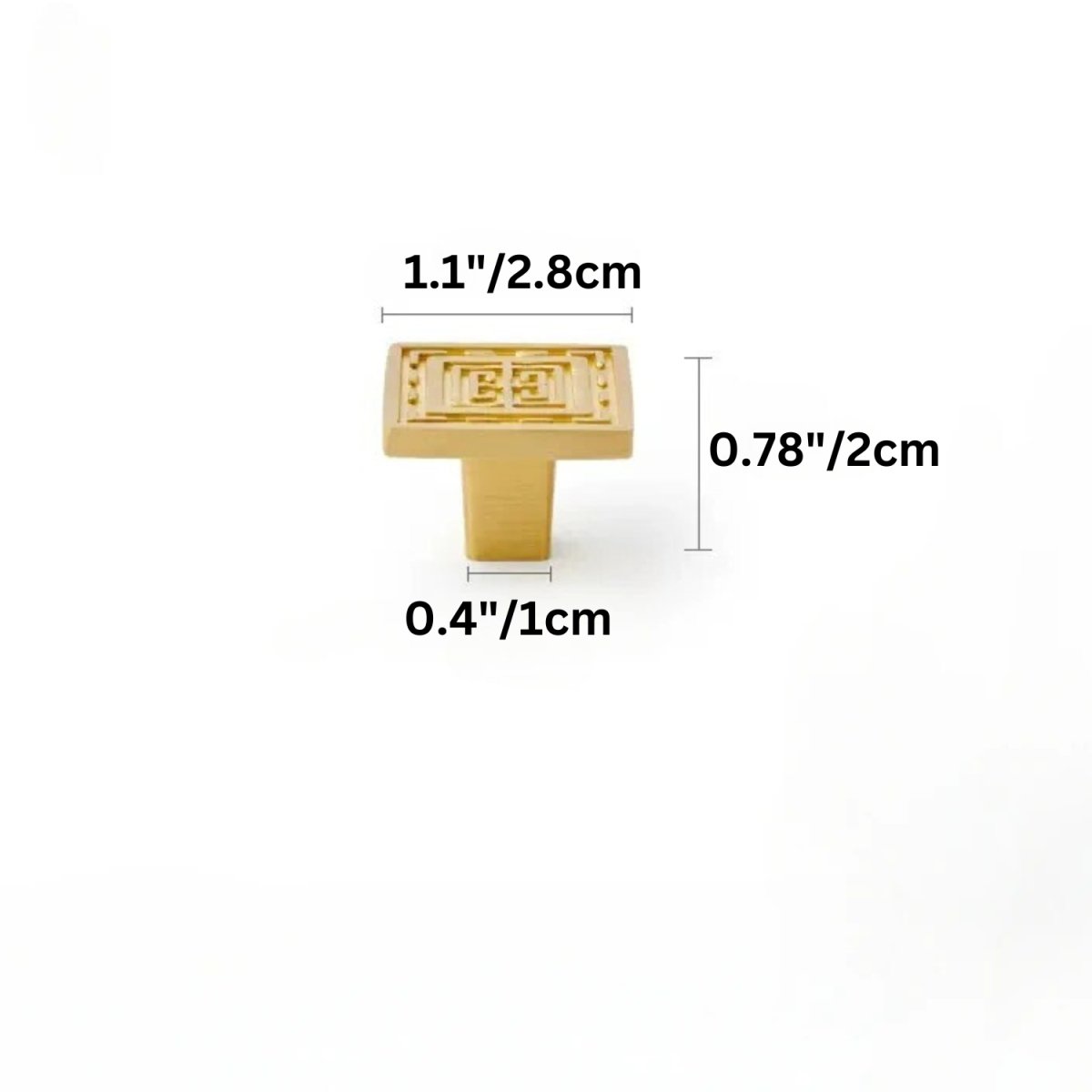

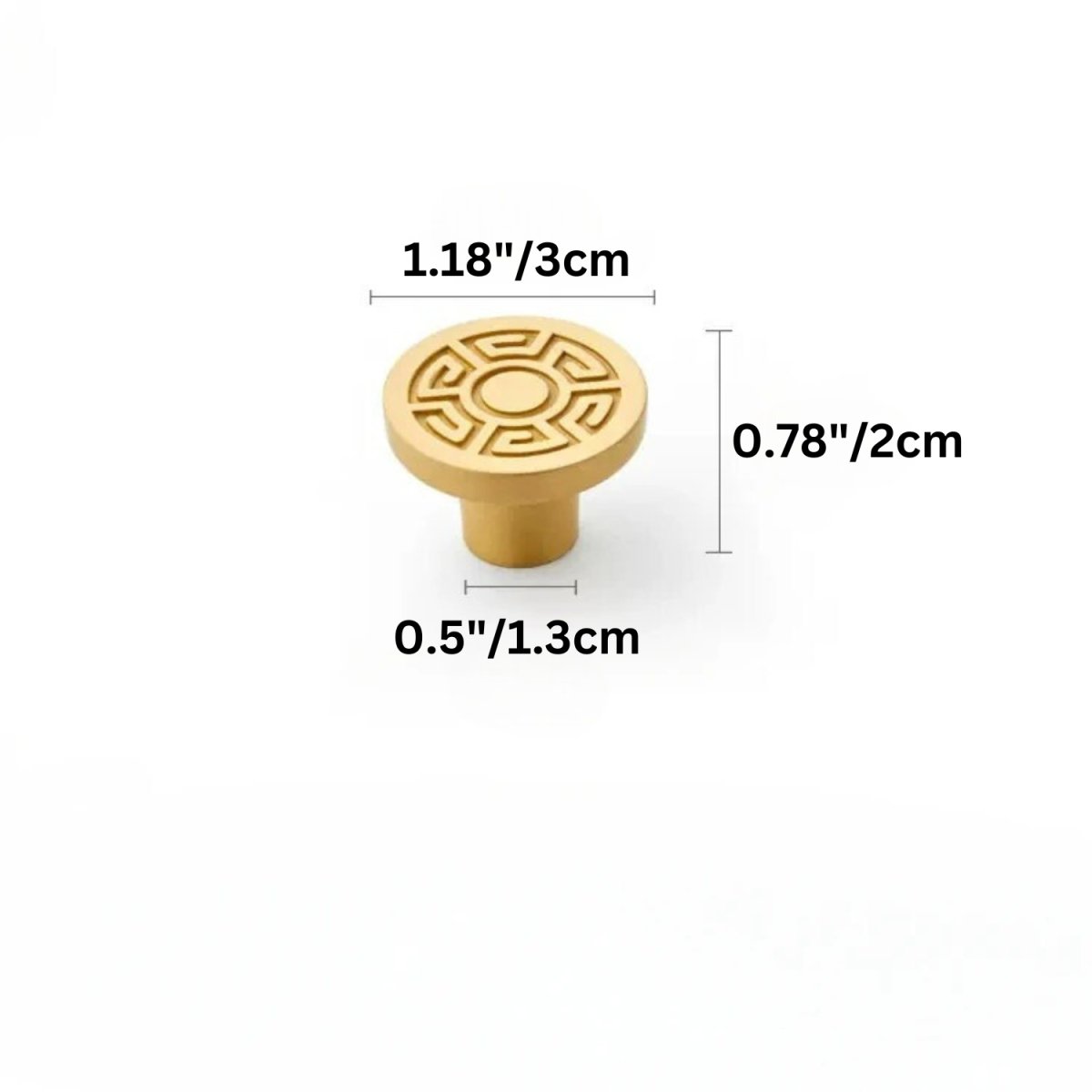

  Knob: D1.18" x H0.78", 0.77lbs (0.35kg)

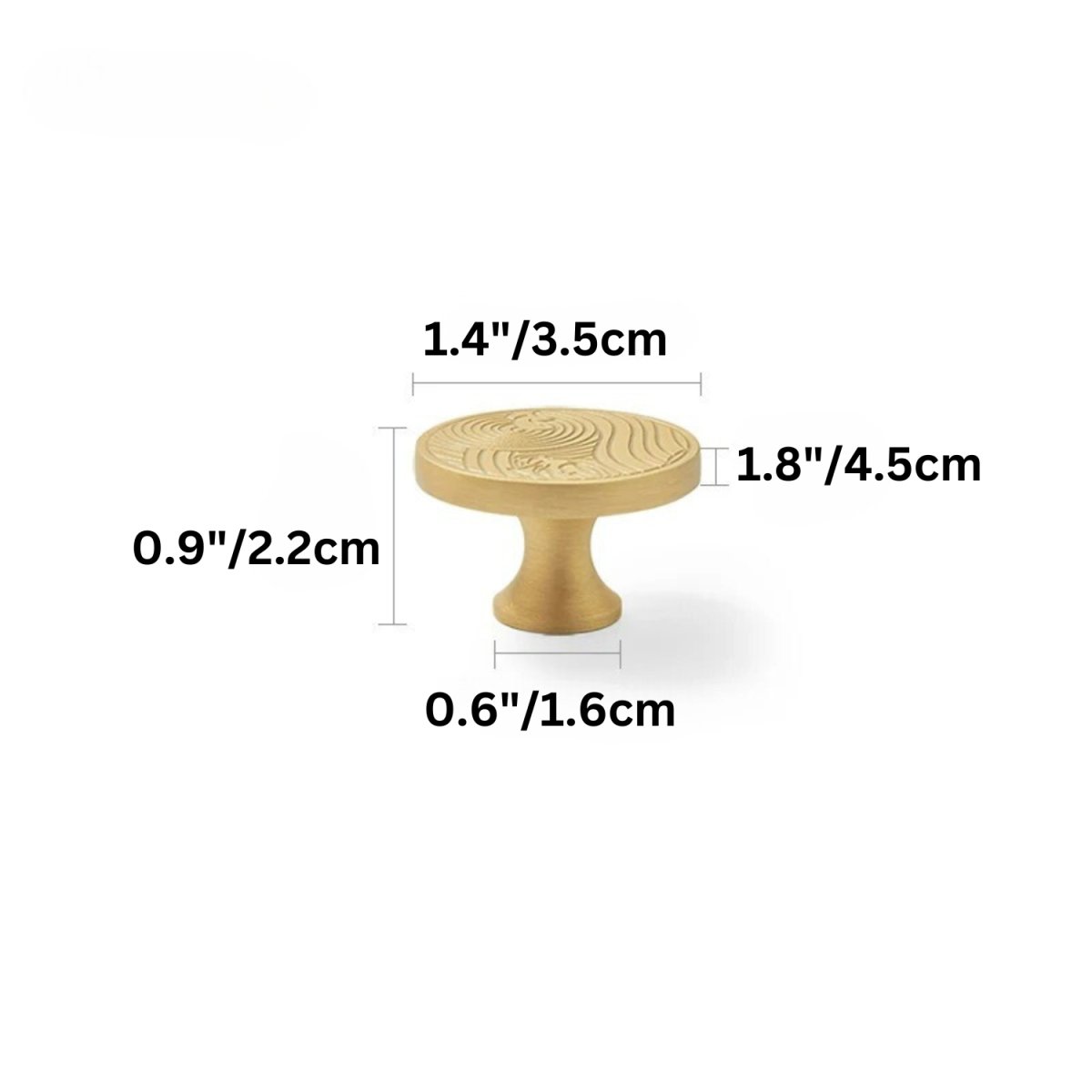

  Knob: D1.4" x H0.9", 0.77lbs (0.35kg)
  Knob: D0.98" x H1.18", 0.77lbs (0.35kg)
  Knob: L2.7" x H0.78", 0.77lbs (0.35kg)
  Knob: L2.1" x H0.78", 0.77lbs (0.35kg)
  Knob: D2" x H1.1", 0.77lbs (0.35kg)
  Knob: L1.1" x H0.78", 0.77lbs (0.35kg)

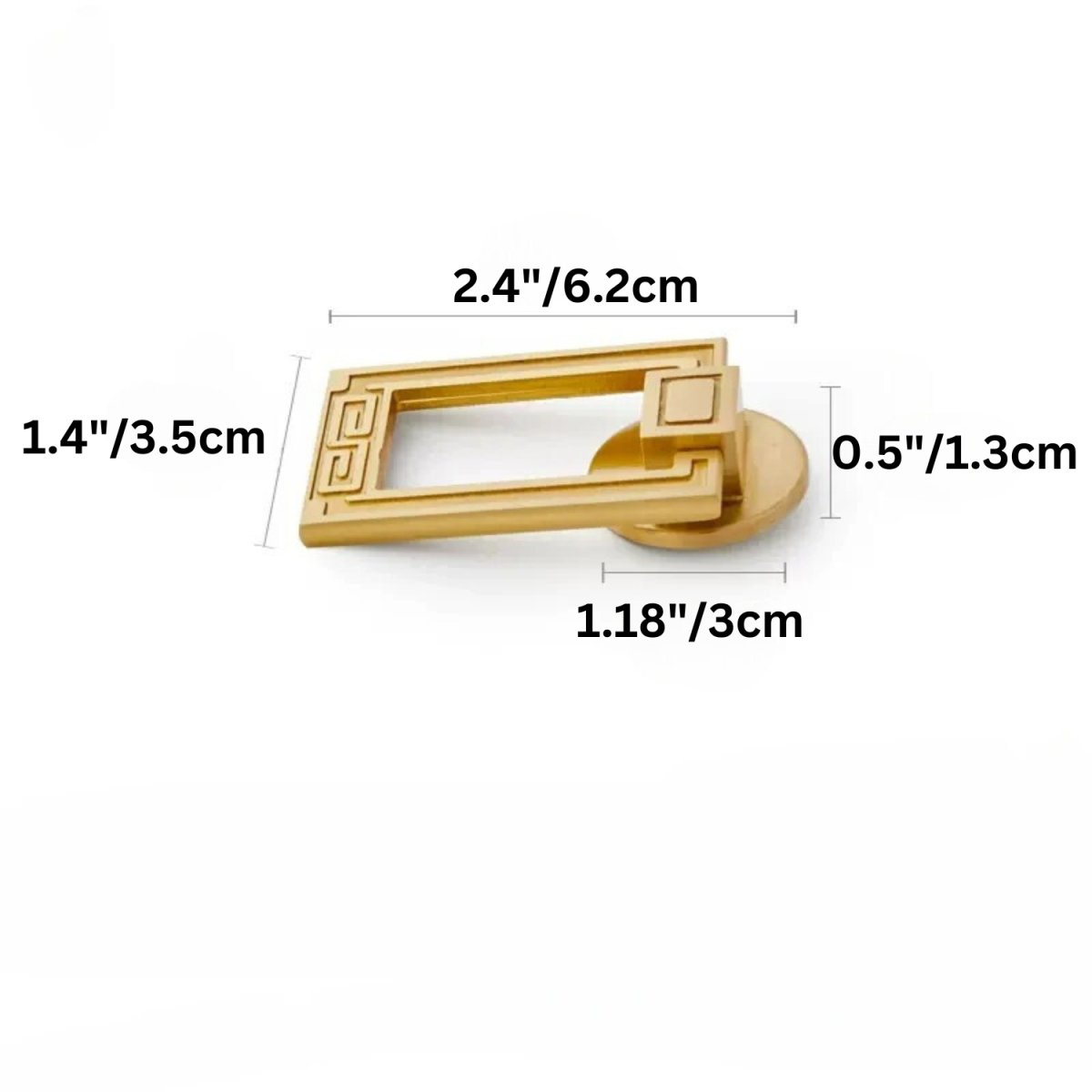

  Knob: L2.4" x H1.4", 0.77lbs (0.35kg)
  Knob: L2.2" x H1.18", 0.77lbs (0.35kg)

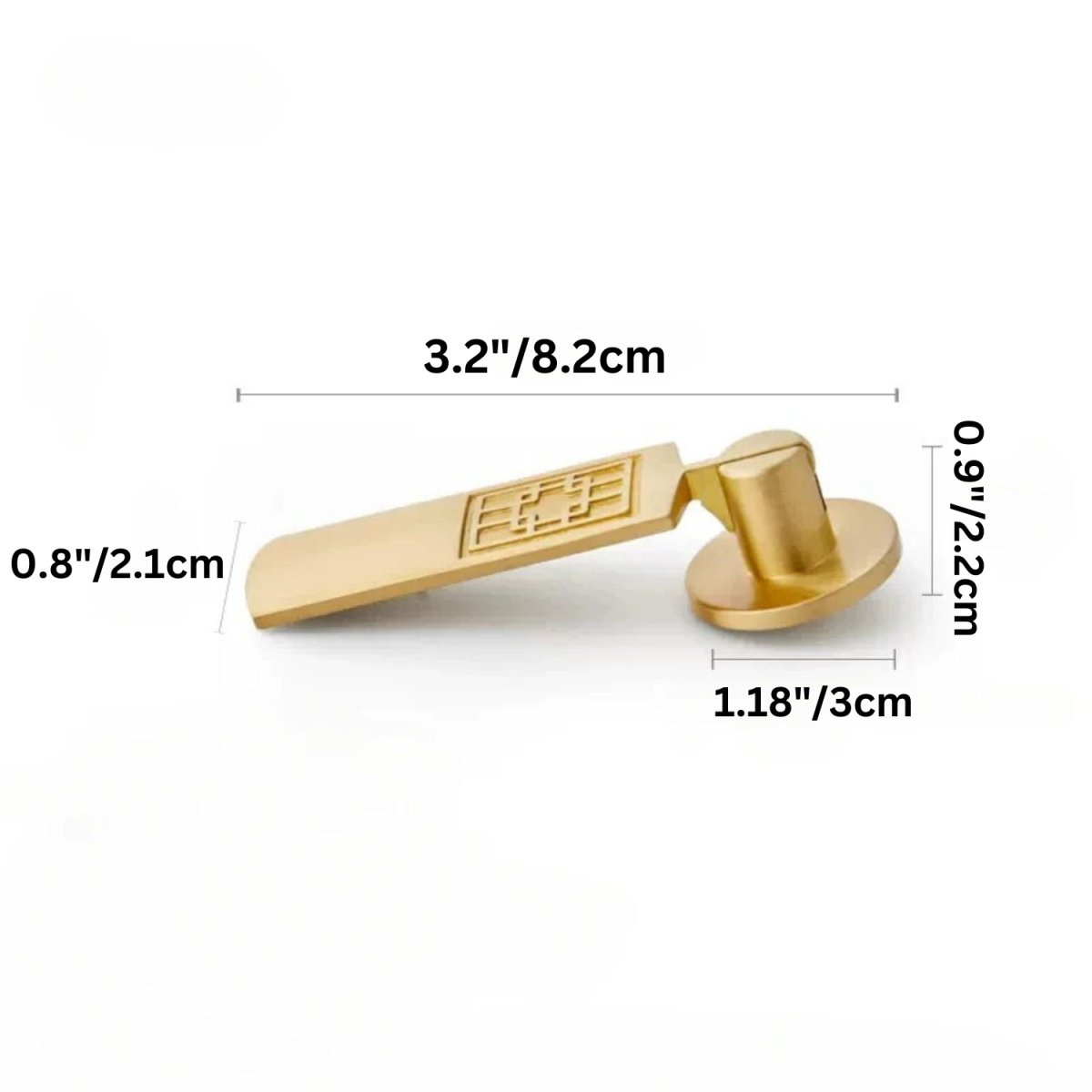

  Knob: L3.2" x H1.18", 0.77lbs (0.35kg)
  Pull Bar: L3.1" x H0.98", 0.77lbs (0.35kg)
• Hole Spacing: L2.5"
• Material: Brass
• Finish: Brass
• Grip Style: Knurled
• Application: Cupboard, Cabinets, Drawer

NOTE
1 in = 2.54 cm; 1 cm = 0.39 in

Details

Mounting Type:
Designed for surface installation on doors, drawers, or cabinetry. Refer to your product’s dimensions for proper placement and drilling points.

Tools You May Need

• Screwdriver (Phillips and flathead)
• Drill and drill bits
• Allen key
• Tape measure and pencil
• Level
• Chisel (for mortice lock installation)
• Screws and anchors
• Safety goggles

A. Cabinet Hardware

(Pull Bars, Knobs, Drawer Pulls)

Step 1: Mark Drilling Points Use a measuring tape and pencil to mark hole placements. For uniformity across multiple pieces, a template is recommended.

Step 2: Drill Holes Drill through the surface using a bit that matches the provided screw diameter. Keep the drill straight to avoid angle misalignment.

Step 3: Mount the Hardware Insert screws from the inside of the cabinet or drawer. Secure the hardware on the front face and tighten with a screwdriver — avoid over tightening.

Step 4: Align and Inspect Confirm straightness and spacing before fully securing.

B. Door Handle Hardware

B1: Thumb Lock or Dummy Handle

Step 1: Confirm Orientation Determine left-hand or right-hand door swing. Adjust handle orientation as needed.

Step 2: Mark Installation Height Mark desired height (typically 36–38 inches from the floor to the handle center). Align the mounting plate accordingly.

Step 3: Drill and Attach Drill pilot holes and secure the backplate and handle with the included screws. For dummy handles, install directly without latch mechanisms.

Step 4: Install Strike Plate (Thumb Lock Only) Mark latch location on the door frame. Chisel a recess if needed and screw the strike plate into place.

B2: Mortice Lock Handle

Step 1: Cut Mortice Pocket Using a chisel and drill, create a cavity in the door edge for the lock body. Use provided measurements for accuracy.

Step 2: Insert Lock Body Fit the lock body into the mortice cavity and attach it using screws through the faceplate.

Step 3: Install Handle Align the spindle through the lock and attach handles on both sides. Tighten using a screwdriver or included Allen key.

Step 4: Install Cylinder (If Applicable) Insert the key cylinder into the designated slot. Secure with the cylinder screw from the door edge.

Step 5: Mount Strike Plate Align with the latch mechanism and secure the strike plate to the door frame.

Important Tips

• Always double-check measurements before drilling.
• Use a level for consistent handle alignment across multiple units.
• If unfamiliar with mortice installation, consult a locksmith or professional.
• Ensure all moving parts operate smoothly before tightening screws.
• Dummy handles are for decorative or pull-only use — they do not engage latches or locks.

• Order Handling Time:
  1–3 business days

• Transit Time:
  14–22 business days after order placement

• Estimated Delivery Time:
  15–25 business days

For full details, please refer to our Shipping Policy

We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.

Claims submitted after this period may not be eligible for a refund or replacement.
