In stock | Ready to Ship
Valcor Downlight
What You’ll Love:
⭕ Architectural Recessed Form: Square silhouette with subtle ribbed edges creates a clean, contemporary ceiling detail. A refined addition to modern interiors
💡 Glare-Free Focused Illumination: Designed to deliver even, comfortable light that enhances kitchens, living areas, and workspaces
🛡️ Durable Gypsum & Aluminium Build: Premium construction with replaceable LED compatibility ensures long-term performance and energy efficiency
Description

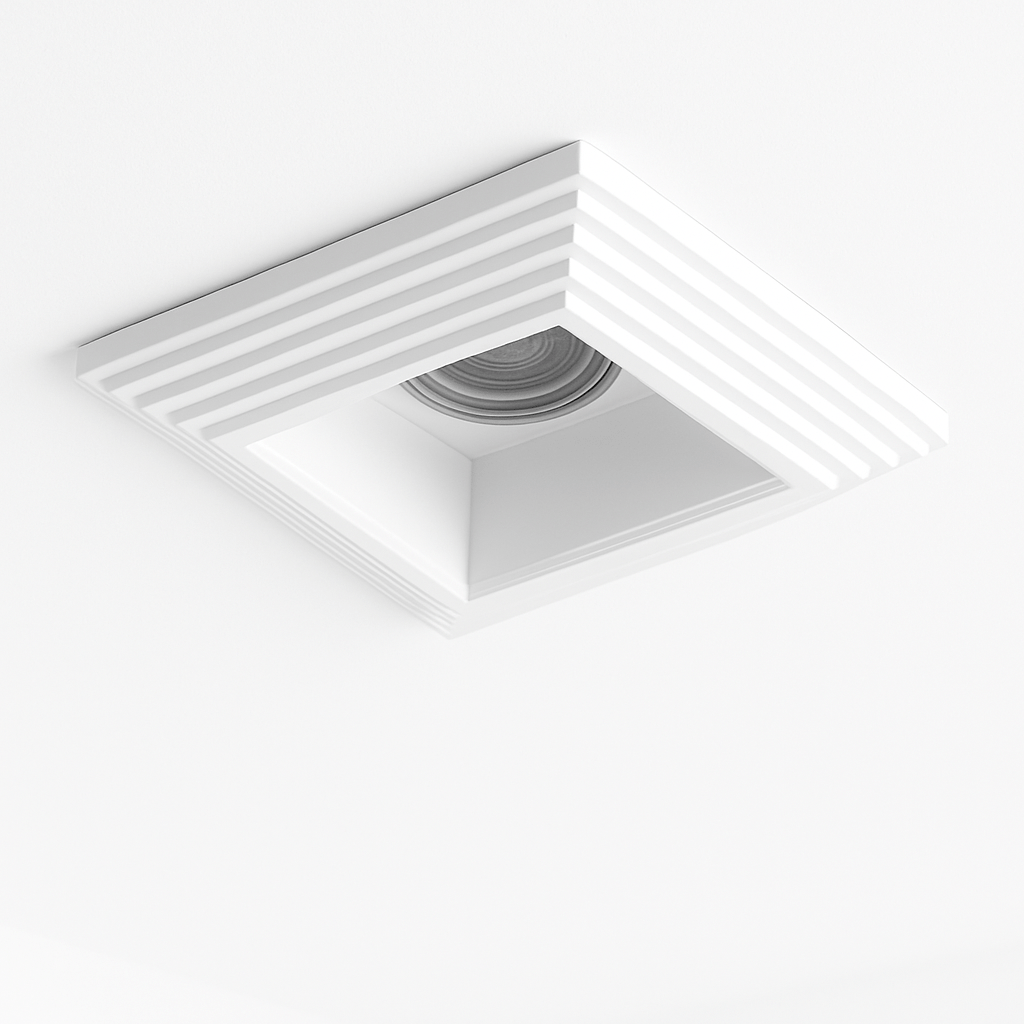

The Valcor Downlight is crafted from gypsum and aluminium, defined by a recessed square silhouette with refined ribbed edges. Its architectural form integrates seamlessly into ceilings, delivering a clean, contemporary finish suited to modern interiors.
Designed to provide focused, glare-controlled illumination, Valcor enhances kitchens, living rooms, offices, and dining spaces with balanced brightness. Constructed with durable ceramic plaster for a premium surface finish, it supports replaceable LED bulbs for energy-efficient performance and long-term flexibility.
- Weights & Dimensions

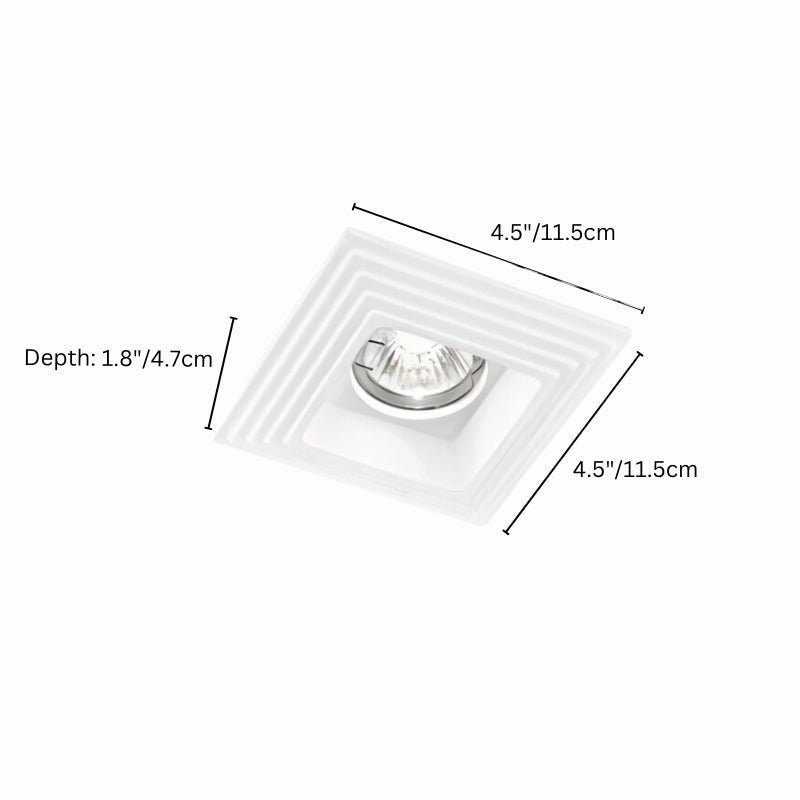

L4.5" x H1.8", 0.68lbs (0.31kg) - Wattage (Lumens): 5W (500lm)
- Material: Gypsum, Aluminum
- Finish: White
- Light Source: LED Light Bulb (Replaceable)
- Bulb Included: Yes
- Number of Bulbs: 1
- Bulb Base: GU10
- Dimmable: Upon Request
- Voltage: 90-260VAC
- Installation Type: Hardwired
- Canopy/Backplate Dimensions: L4.5" x W4.5"
- Sloped Ceiling Compatible?: Yes
- Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
NOTE
1 in = 2.54 cm; 1 cm = 0.39 in
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Always confirm the mounting type listed on the product page before installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Select models may also support concrete or drop ceilings—refer to technical specifications for confirmation.
Dimming: Many designs support dimming when paired with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional drywall finishing for a seamless, flush appearance.
Track Compatibility: Track-mounted fixtures must be installed on compatible rail systems. Refer to product specifications for track type.
Tools You May Need
- Drill
- Keyhole or drywall saw (for recessed or trimless installations)
- Screwdriver
- Voltage tester
- Wire stripper
- Wire nuts (included with most fixtures)
- Screws and wall anchors (for surface-mounted installations)
- Level
- Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power
Turn off power at the breaker panel and use a voltage tester to confirm the circuit is completely off before beginning installation.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If a ceiling cutout is required, use the provided template to mark the opening. Carefully cut using a drywall saw or hole cutter. Trimless models may require additional depth and framing for proper installation.
Step 3: Install Mounting Hardware or Fixture Housing
- Recessed and trimless fixtures: Insert the housing into the ceiling cavity and secure using spring clips or fasteners. Trimless models may require joist framing for support.
- Semi-recessed fixtures: Partially recess into the ceiling and secure according to included instructions.
- Surface-mounted fixtures: Attach directly to the ceiling or junction box using screws and wall anchors.
- Track-mounted fixtures: Install the compatible track system first, then lock the fixture into place on the rail.
Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:
- Black to black (live)
- White to white (neutral)
- Green or bare wire to ground
- Secure all connections with wire nuts and neatly tuck the wiring into the housing or junction box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling surface before final painting. Recessed, semi-recessed, and surface-mounted fixtures are completed by snapping or twisting the trim or body into place. Track fixtures can be adjusted and rotated along the rail after installation.
Step 6: Restore Power and Test
Restore power at the breaker panel and test the fixture using the wall switch or dimmer to ensure proper operation.
Important Tips
- Professional installation is recommended for trimless or recessed fixtures, especially when drywall finishing or insulation is involved.
- Always follow local electrical codes and regulations.
- Use only compatible drivers and dimmers specified for the fixture.
- Maintain safe spacing from insulation to prevent overheating.
- Order Handling Time:
1–3 business days
- Transit Time:
14–22 business days after order placement
- Estimated Delivery Time:
15–25 business days
For full details, please refer to our Shipping Policy
We offer a 30-day return window. Simply contact our support team info@solincollective.com to initiate a return.
Claims submitted after this period may not be eligible for a refund or replacement.
Choose options
Safe payment on our website
Valcor Downlight
Frequently Asked Questions
It is crafted from gypsum and aluminium, combining a refined surface finish with structural durability.
It is designed for replaceable LED bulbs, supporting energy-efficient illumination.
Yes. Its understated form allows it to complement both modern and traditional interiors.
It is designed for ceiling-mounted installation in spaces such as living rooms, dining areas, and bedrooms.
When paired with LED bulbs, it provides energy-efficient lighting with reduced power consumption.
